Female Inserts,Contacts 9/12/25+PE,Crimp connection,5/10/40A 50/250/630V KLS1-HK-009-12-25FC All Products in HK Inserts Series

Female Inserts,Contacts 9/12/25+PE,Crimp connection,5/10/40A 50/250/630V


  Product Images

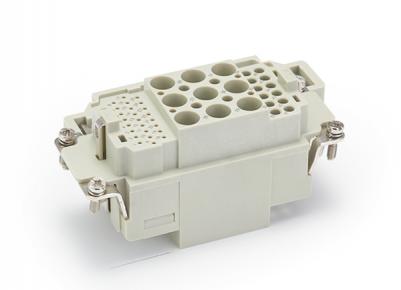

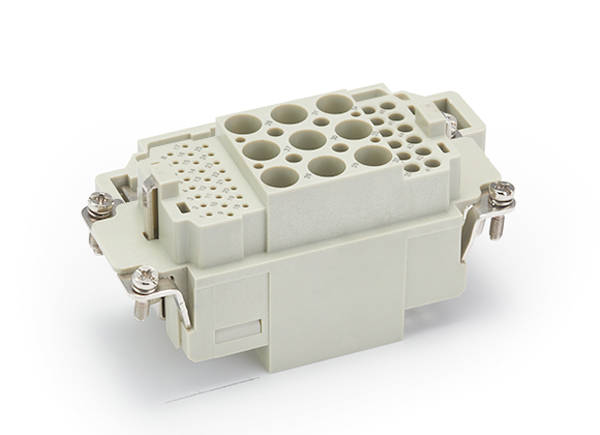

Female Inserts,Contacts 9/12/25+PE,Crimp connection,5/10/40A 50/250/630V


  Product Information
Material:
Housing: Polycarbonate, UL94V-0
Colour: RAL 7032 (Light grey)
Contacts: Copper Alloy, Hard-silver plated
                Hard-Gold Plated
Wire gauge: 0.09-0.52mm²(28-20 AWG)
                     0.14-2.5mm² (26-14 AWG)
                     1.5-6mm² (16-10 AWG)
Stripping length: 5/8/9(9.6)mm
Tools:
  Crimp contact tool:
    TL02G (0.14~4mm²)
    TL02-0G (1.5~6mm²)
    TL03 (0.09~0.82mm²)
Terminal: Crimp terminal

Electrical Characteristics:
Number of contacts: 9/12/25+PE
Rated Current: 40/10/5A
Rated Voltage: 630/250/50V
 Rated Impulse Voltage: 0.8KV/4KV/8KV
Pollution Degree: 3
Rated Voltage Acc.to UL CSA: 600V
Insulation Resistance: 1010Ω Min
Contact Resistance: 3mΩ Max
Limiting Temperatures: -40℃ ~ +125℃
Mating cycles: 500 Times Min

Picture Part No. PDF Description Order Qty. Time Order
