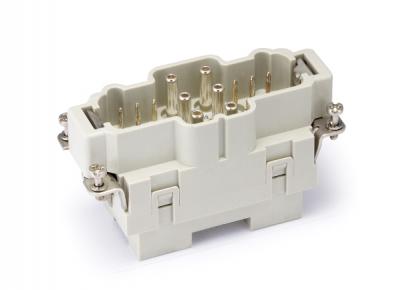

Male Inserts,Contacts 6/12+PE,Axial Screw connection,10A 230/400V & 40A 690V KLS1-HK-006.1-12M & KLS1-HK-006.2-12M All Products in HK Inserts Series

Male Inserts,Contacts 6/12+PE,Axial Screw connection,10A 230/400V & 40A 690V


  Product Images
Male Inserts,Contacts 6/12+PE,Axial Screw connection,10A 230/400V & 40A 690V


  Product Information
Material:
Housing: Polycarbonate, UL94V-0
Colour: RAL 7032 (Light grey)
Contacts: Copper Alloy, Hard-silver plated
Wire gauge:
  Power contacts: 2.5-8mm² / 6-10mm²
  Signal contacts: 0.2-2.5mm² (24-14 AWG)
Max.insulation diameter: 6.1mm
Tightening tourque:
  Power contacts:
    mm²: 2.5    4   6  10
    N.m:  1.5  1.5  2   2
  Signal contacts: 0.8N.m
Stripping length:
  Power contacts:
    mm²: 2.5      4         6        10
    mm: 5±1  5.1±1   8±1   8±1
Signal contacts: 7.5mm
Tools:
  Hexagonal Driver: SW-2x40
Terminal: axial screw terminal
Electrical Characteristics:
Number of contacts: 6/12+PE
Power Area:
  Rated Current: 40A
  Rated Voltage: 690V
  Rated Impulse Voltage: 6KV
Signal Area:
  Rated Current: 10A
  Rated Voltage: 230V/400V
  Rated Impulse Voltage: 4KV
Pollution Degree: 3
Insulation Resistance: 1010Ω Min
Contact Resistance:
  Power contacts: 0.5mΩ Max
  Signal contacts: 3mΩ Max
Limiting Temperatures: -40℃ ~ +125℃
Mating cycles: 500 Times Min

Picture Part No. PDF Description Order Qty. Time Order
