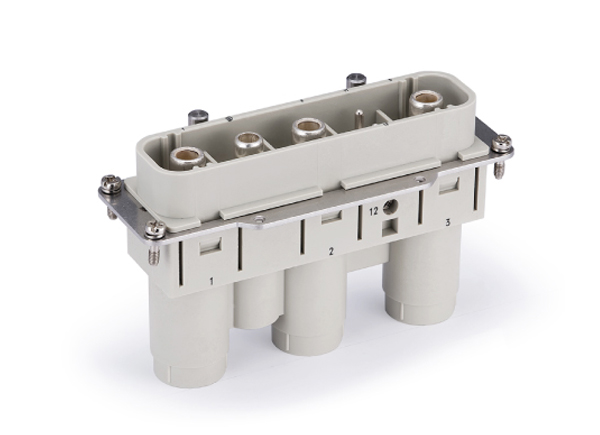

Male Inserts,Contacts 3/0+PE,Axial Screw connection,200A 830V KLS1-HK-003-0M All Products in HK Inserts Series

Male Inserts,Contacts 3/0+PE,Axial Screw connection,200A 830V


  Product Images
Male Inserts,Contacts 3/0+PE,Axial Screw connection,200A 830V


  Product Information
Material:
Housing: Polycarbonate, UL94V-0
Colour: RAL 7032 (Light grey)
Contacts: Copper alloy, Hard-silver plated
Wire gauge:
  Power contacts: 35-70mm² (2-00 AWG)
  PE contacts: 16-35mm² (5-2 AWG)
Tightening tourque:
  Power contacts:
    mm²: 35   50    70
    N·m:  8      9     10
  PE contacts: 6N·m
Stripping length:
  Power contacts: 22mm
  PE contacts: 14mm
Hexagonal driver:
  Power contacts: SW5
  PE contacts: SW4
Terminal: axial screw terminal

Electrical Characteristics:
Number of contacts: 3/0+PE
Rated Current: 200A
Rated Voltage: 830V
Rated Impulse Voltage: 8KV
Pollution Degree: 3
For stranded wire acc.to: IEC 60 228-5
Insulation Resistance: 1010Ω Min
Contact resistance: 0.2mΩ Max
Limiting Temperatures: -40℃ ~ +125°C
Mating cycles: 500 Times Min
