Female Inserts,Contacts 32/55+PE,Crimp connection,5/10A 50/250V KLS1-HK-032-55FC All Products in HK Inserts Series

Female Inserts,Contacts 32/55+PE,Crimp connection,5/10A 50/250V

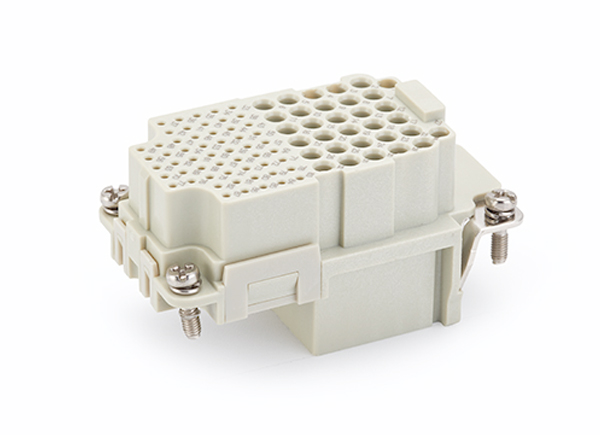

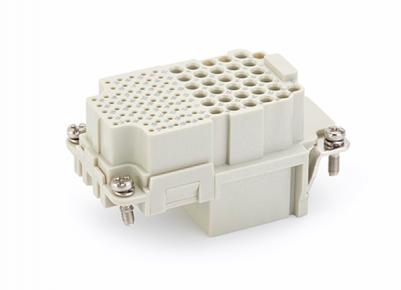

  Product Images
Female Inserts,Contacts 32/55+PE,Crimp connection,5/10A 50/250V


  Product Information
Material:
Housing: Polycarbonate, UL94V-0
Colour: RAL 7032 (Light grey)
Contacts: Copper Alloy, Hard-silver plated
                Hard-Gold Plated
Wire gauge: 0.09-0.52mm²(16-10 AWG) / 0.14-2.5mm² (26-14 AWG)
Stripping length: 5/8mm
Tools:
  Crimp contact tool:
    TL02G (0.14~4mm²)
    TL03 (0.09~0.82mm²)
Terminal: Crimp terminal

Electrical Characteristics:
Number of contacts: 32/55+PE
Rated Current: 4A/10A
Rated Voltage: 50V/250V
 Rated Impulse Voltage: 0.8KV/4KV
Pollution Degree: 2
Rated Voltage Acc.to UL CSA: 600V
Insulation Resistance: 1010Ω Min
Contact Resistance: 3mΩ Max
Limiting Temperatures: -40℃ ~ +125℃
Mating cycles: 500 Times Min
