Male Inserts,Contacts 4/0+PE,Screw connection,80A 830V KLS1-HK-004-0M All Products in HK Inserts Series

Male Inserts,Contacts 4/0+PE,Screw connection,80A 830V

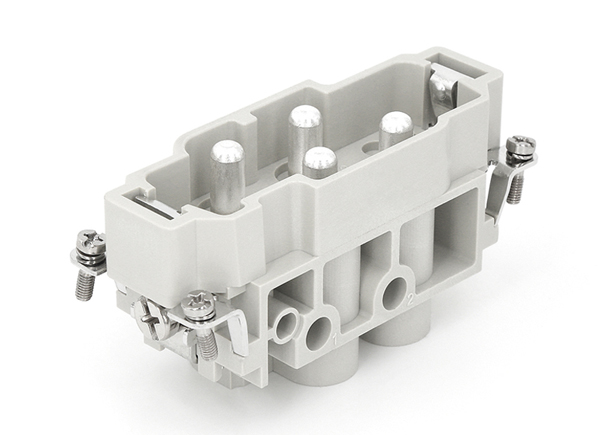

  Product Images
Male Inserts,Contacts 4/0+PE,Screw connection,80A 830V


  Product Information
Material:
Housing: Polycarbonate, UL94V-0
Colour: RAL 7032 (Light grey)
Contacts: Copper alloy, Hard-silver plated
Wire gauge: 1.5-16 mm² (16-6 AWG)
Tightening tourque:
  mm²: 1.5  2.5  4  6  10  16
  N.m:  12    2    3  3   3    3
Stripping length: 14mm
Terminal: screw terminal

Electrical Characteristics:
Number of contacts: 4/0+PE
Rated Current: 80A
Rated Voltage: 830V
Rated Impulse Voltage: 8KV
Pollution Degree: 3
Rated voltage acc.to UL/CSA: 600V
Insulation Resistance: 1010Ω Min
Contact Resistance: 0.3mΩ Max
Limiting Temperatures: -40℃ ~ +125°C
Mating cycles: 500 Times Min

Picture Part No. PDF Description Order Qty. Time Order
