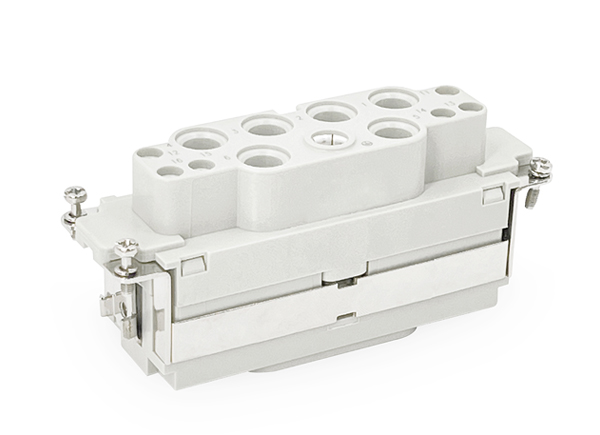

Female Inserts,Contacts 6/6+PE,Screw connection,16A 400V & 100A 690V KLS1-HK-006-6F All Products in HK Inserts Series

Female Inserts,Contacts 6/6+PE,Screw connection,16A 400V & 100A 690V


  Product Images
Female Inserts,Contacts 6/6+PE,Screw connection,16A 400V & 100A 690V


  Product Information
Material:
Housing: Polycarbonate, UL 94V-0
Colour: RAL 7032 (Light grey)
Contacts: Brass, Hard-silver plated
Wire gauge:
  Power arera: 1.5-16mm² (16-6AWG)
  Signal arera: 0.5-2.5mm² (20-14 AWG)
Tightening tourque:
  Power area:
    mm²: 1.5  2.5  4  6  10  16
    N.m:  12    2    3  3   3    3
Signal contacts: 0.5N.m
Stripping length:
  Powe contact: 14mm
  Spignal contacts: 7.5mm
Terminal: screw terminal
Electrical Characteristics:
Number of contacts: 6/6+PE
Power Area:
  Rated Current: 80A
  Rated Voltage: 830V
  Rated Impulse Voltage: 8KV
Signal Area:
  Current Rared: 16A
  Voltage Rated: 400V
  Rated Impulse Voltage: 6KV
Pollution Degree: 3
Rated voltage acc.to UL /CSA: 600V/300V
Insulation Resistance: 1010Ω Min
Contact Resistance:
  Power contacts: 0.3mΩ Max
  Signal contacts: 1mΩ Max
Limiting Temperatures: -40℃ ~ +125℃
Mating cycles: 500 Times Min

Picture Part No. PDF Description Order Qty. Time Order
