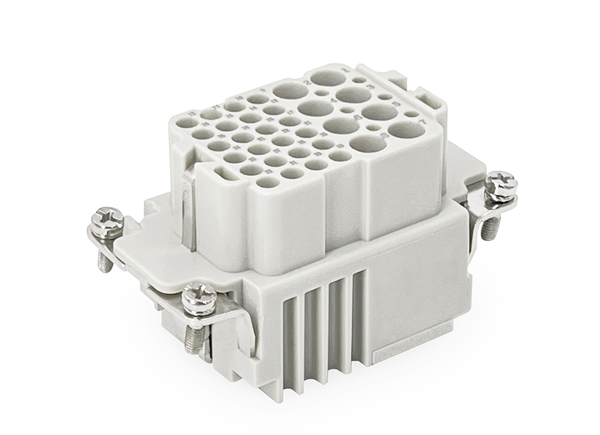

Female Inserts,Contacts 8/24+PE,Crimp connection,10A 250V & 16A 400V KLS1-HK-008-24FC All Products in HK Inserts Series

Female Inserts,Contacts 8/24+PE,Crimp connection,10A 250V & 16A 400V


  Product Images
Female Inserts,Contacts 8/24+PE,Crimp connection,10A 250V & 16A 400V


  Product Information
Material:
Housing: Polycarbonate, UL94V-0
Colour: RAL 7032 (Light grey)
Contacts: Copper Alloy, Hard-silver plated
                Hard-Gold Plated
Wire gauge:
  Power contacts: 0.5-4mm²(20-12 AWG)
  Signal contacts: 0.14-2.5mm² (26-14 AWG)
Tools:
  Crimp contact tool:
    TL02G (0.14~4mm²)
    TL02 (0.14~0.37mm²)
Terminal: Crimp terminal

Electrical Characteristics:
Number of contacts: 8/24+PE
Power Area:
  Rated Current: 16A
  Rated Voltage: 400V
  Rated Impulse Voltage: 6KV
Signal Area:
  Current Rated: 10A
  Voltage Rated: 250V
  Rated Impulse Voltage: 4KV
Pollution Degree: 3
Rated Voltage Acc.to UL CSA: 600V/300V
Insulation Resistance: 1010Ω Min
Contact Resistance:
  Power Contact: 1mΩ Max
  Signal Contact: 3mΩ Max
Limiting Temperatures: -40℃ ~ +125℃
Mating cycles: 500 Times Min
