Female Inserts,Contacts 6/6+PE,Screw connection,10A 50V/120V KLS1-HWK-006-6F All Products in HK Inserts Series

Female Inserts,Contacts 6/6+PE,Screw connection,10A 50V/120V

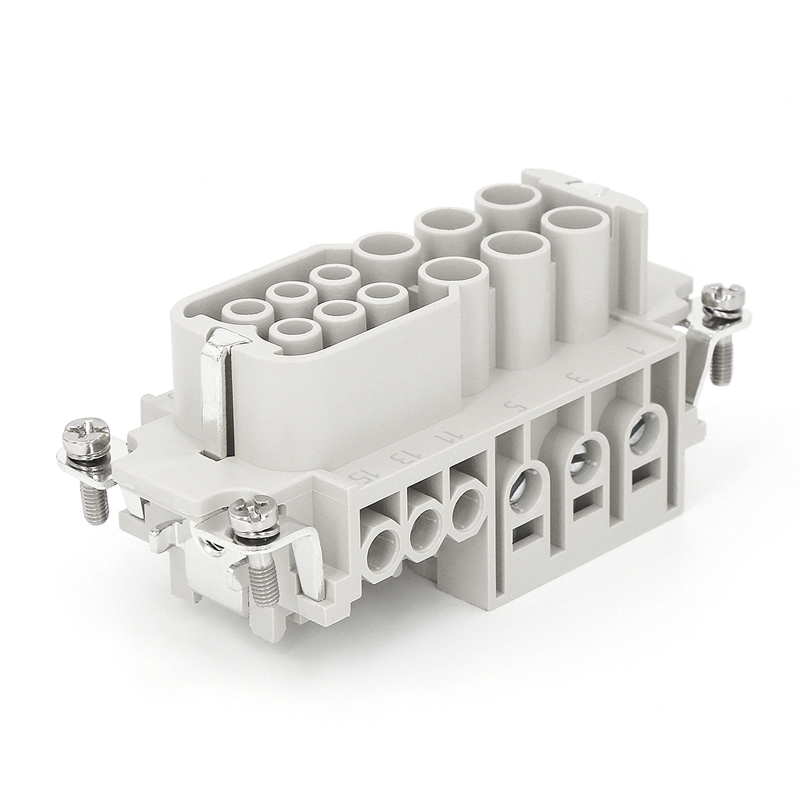

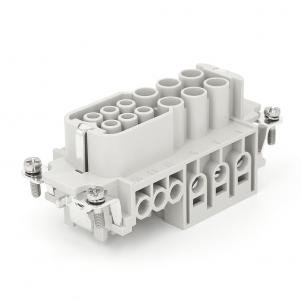

  Product Images
Female Inserts,Contacts 6/6+PE,Screw connection,10A 50V/120V


  Product Information
Material:
Housing: Polycarbonate, UL94V-0
Colour: RAL 7032 (Light grey)
Contacts: Copper Alloy, Hard-silver plated
Wire gauge:
  Power Contacts: 4~10mm² (12~8 AWG)
  Signal Contacts: 1~2.5mm²(18~4 AWG)
Tightening Torque:
  Power Contacts:
  mm²: 1.5  2.5  4  6  10  16
  N.m: 1.2  2  3  3  3  3
  Signal Contacts: 0.5N.m
Terminal: Screw terminal

Electrical Characteristics:
Number of contacts: 6/6+PE
Rated Current:
  Power Area: 40A  Signal Area: 16A
Rated Voltage:
  Power Area: 690V  Signal Area: 400V
Rated Impulse Voltage:
  Power Area: 8KV  Signal Area: 6KV
Pollution Degree: 3
Rated Voltage Acc.to UL CSA: 600V / 600V
Insularion Resisrance: 1010Ω Min
Contact Resistance:
  Power Contacts: 0.3mΩ Max
  Signal Contacts: 1mΩ Max
Limiting Temperatures: -40℃ ~ +125℃
Mating cycles: 500 Times Min

Picture Part No. PDF Description Order Qty. Time Order
