Female Inserts,Contacts 4/4+PE,Crimp connection,16A 250V & 70A 690V KLS1-HK-004-4FC All Products in HK Inserts Series

Female Inserts,Contacts 4/4+PE,Crimp connection,16A 250V & 70A 690V


  Product Images

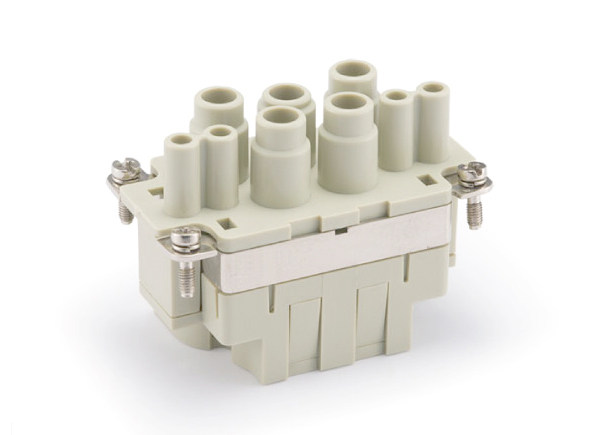

Female Inserts,Contacts 4/4+PE,Crimp connection,16A 250V & 70A 690V


  Product Information
Material:
Housing: Polycarbonate, UL94V-0
Colour: RAL 7032 (Light grey)
Contacts: Copper alloy, Hard-silver plated
Wire gauge:
  Power contacts: 10-25mm²
  Signal contacts: 0.14-4mm² (26-12 AWG)
Stripping length:
  Power contacts: 15.5mm
Max insulation diameter:
  Power contacts: 11mm
Terminal: crimp terminal
Tools:
  Monual hydraulic clamp: TL05(10-240mm²)
  Crimp contact tool:
    TL02G(0.5-4mm²)
    TL02(0.14-0.37mm²)
  Contact removal tool:
    TL12(for crimp contocts 70A)
    TL01(for crimp contocts 16A)
Electrical Characteristics:
Number of contacts: 4/4+PE
Power Area:
  Rated Current: 70A
  Rated Voltage: 690V
  Rated Impulse Voltage: 8KV
Signal Area:
  Current Rared: 16A
  Voltage Rated: 250V
  Rated Impulse Voltage: 4KV
Pollution Degree: 3
Rated voltage acc.to UL /CSA: 600V/230V
Insulation Resistance: 1010Ω Min
Contact Resistance:
  Power contacts: 0.5mΩ Max
  Signal contacts: 1mΩ Max
Limiting Temperatures: -40℃ ~ +125℃
Mating cycles: 500 Times Min
