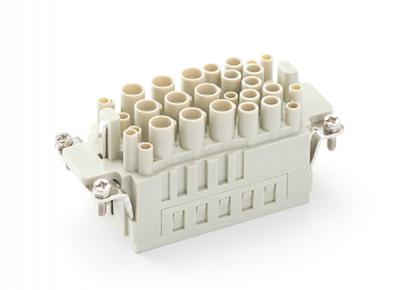

Female Inserts,Contacts 9/9/18+PE,Crimp connection,10/16/40A 250/830/830V KLS1-HK-009-9-18FC All Products in HK Inserts Series

Female Inserts,Contacts 9/9/18+PE,Crimp connection,10/16/40A 250/830/830V

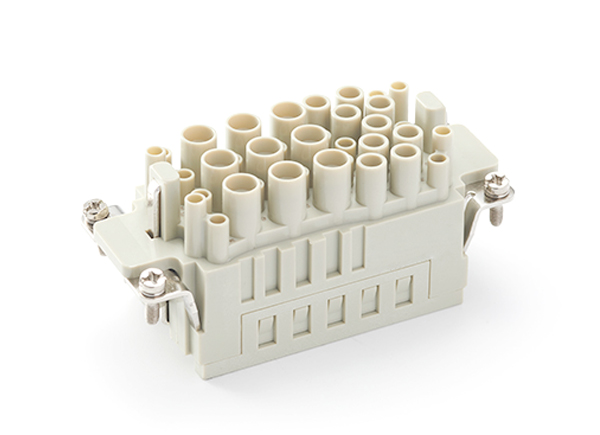

  Product Images
Female Inserts,Contacts 9/9/18+PE,Crimp connection,10/16/40A 250/830/830V


  Product Information
Material:
Housing: Polycarbonate, UL94V-0
Colour: RAL 7032 (Light grey)
Contacts: Copper Alloy, Hard-silver plated
                Hard-Gold Plated
Wire gauge: 0.09-2.5mm²(28-14 AWG)
                     0.14-2.5mm² (26-12 AWG)
                     1.5-6mm² (16-10 AWG)
Stripping length: 9.5/7.5/8(6)mm
Tools:
  Crimp contact tool:
    TL02G (0.14~4mm²)
    TL02-0G (1.5~6mm²)
  Contact removal tool: TL06G/TL01/TL00
Terminal: Crimp terminal

Electrical Characteristics:
Number of contacts: 9/9/18+PE
Rated Current: 40/16/10A
Rated Voltage: 830/830/250V
 Rated Impulse Voltage: 8KV/8KV/4KV
Pollution Degree: 3
Rated Voltage Acc.to UL CSA: 600V
Insulation Resistance: 1010Ω Min
Contact Resistance: 3mΩ Max
Limiting Temperatures: -40℃ ~ +125℃
Mating cycles: 500 Times Min

Picture Part No. PDF Description Order Qty. Time Order
