Male Inserts,Contacts 4/4+PE,Axial Screw/Spring connection,16A 400V & 100A 690V KLS1-HK004.1-4M & KLS1-HK-004.2-4M All Products in HK Inserts Series

Male Inserts,Contacts 4/4+PE,Axial Screw/Spring connection,16A 400V & 100A 690V


  Product Images

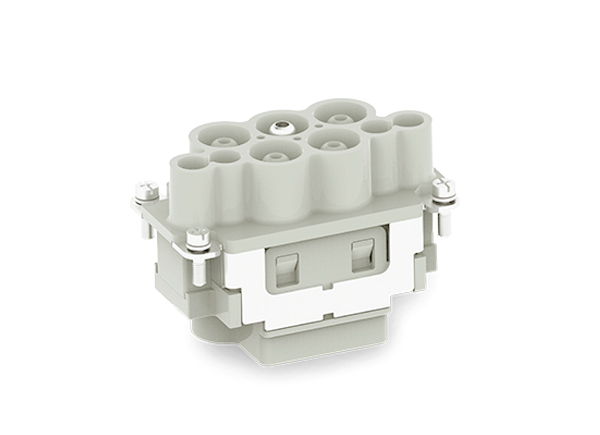

Male Inserts,Contacts 4/4+PE,Axial Screw/Spring connection,16A 400V & 100A 690V


  Product Information
Material:
Housing: Polycarbonate, UL 94V-0
Colour: RAL 7032 (Light grey)
Contacts: Copper Alloy, Hard-silver plated
Wire gauge:
  Power arera: 6-16mm² (10-6 AWG) / 14-22mm² (8-4 AWG)
  Signal arera: 0.14-2.5mm² (26-14 AWG)
Tightening Torque:
    mm²: 6   10   16   22
    N·m:  2    3     4     5
Max.insulation diameter:
  Power contacts: 11mm
Stripping length:
  Powe contact:
    mm²: 16        22
    mm: 11+1  12.5+1
  Spignal contacts: 7-9mm
Terminal: aixal screw terminal / spring terminal
Electrical Characteristics:
Number of contacts: 4/4+PE
Power Area:
  Rated Current: 63A
  Rated Voltage: 690V
  Rated Impulse Voltage: 8KV
Signal Area:
  Rated Current: 16A
  Rated Voltage: 250V
  Rated Impulse Voltage: 4KV
Pollution Degree: 3
Rated voltage acc.to UL /CSA: 600V/230V
Insulation Resistance: 1010Ω Min
Contact Resistance:
  Power contacts: 0.5mΩ Max
  Signal contacts: 1mΩ Max
Limiting Temperatures: -40℃ ~ +125℃
Mating cycles: 500 Times Min
