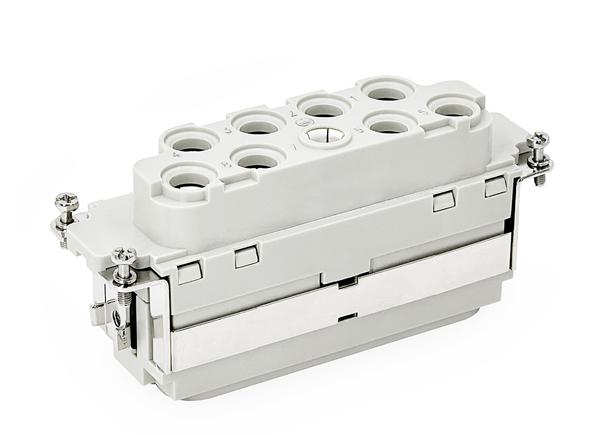

Female Inserts,Contacts 8/0+PE,Axial Screw connection,100A 690V KLS1-HK-008-0F All Products in HK Inserts Series

Female Inserts,Contacts 8/0+PE,Axial Screw connection,100A 690V


  Product Images
Female Inserts,Contacts 8/0+PE,Axial Screw connection,100A 690V


  Product Information
Material:
Housing: Polycarbonate, UL94V-0
Colour: RAL 7032 (Light grey)
Contacts: Copper Alloy, Hard-silver plated
Wire gauge: 10-25mm² (7-3AWG)
Insulation diameter: 11.4mm Max
Tightening tourque:
  mm²: 35  50  70
  N.m:   8    9  10
Stripping length: 13±1
Tools:
  Hexagonal driver: SW-4x100
  Terminal: axial screw terminal

Electrical Characteristics:
Number of contacts: 8/0+PE
Rated Current: 100A
Rated Volrage: 690V
Rated Impulse Voltage: 8KV
Pollution Degree: 3
Rated voltage acc.to UL: 600V
Rated current acc.to UL: 82A
Insulation Resistance: 1010Ω Min
Contact resistance: 0.5mΩ Max
Limiting Temperatures: -40℃ ~ +125℃
Mating cycles: 500 Times Min
