Male Inserts,Contacts 6/36+PE,Crimp connection,10A 160V & 40A 690V KLS1-HK-006-36MC All Products in HK Inserts Series

Male Inserts,Contacts 6/36+PE,Crimp connection,10A 160V & 40A 690V


  Product Images

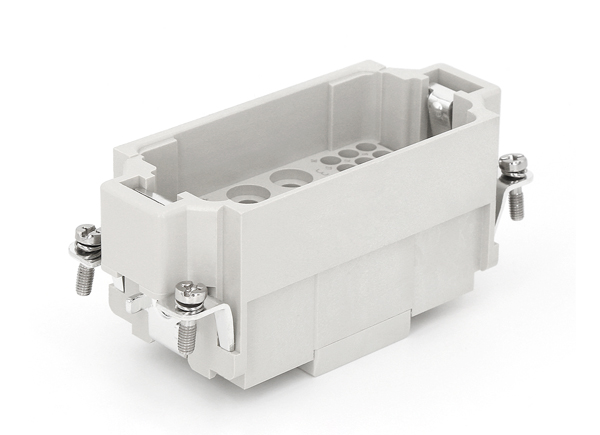

Male Inserts,Contacts 6/36+PE,Crimp connection,10A 160V & 40A 690V


  Product Information
Material:
Housing: Polycarbonate, UL94V-0
Colour: RAL 7032 (Light grey)
Contacts: Copper Alloy, Hard-silver plated
                Hard-Gold Plated
Wire gauge:
  Power contacts: 1.5-6mm²(16-10 AWG)
  Signal contacts: 0.14-2.5mm² (26-14 AWG)
Tools:
  Crimp contact tool:
    TL02G (0.14~4mm²)
    TL02-0G (1.5~6mm²)
Terminal: Crimp terminal

Electrical Characteristics:
Number of contacts: 6/36+PE
Power Area:
  Rated Current: 40A
  Rated Voltage: 690V
  Rated Impulse Voltage: 8KV
Signal Area:
  Current Rated: 10A
  Voltage Rated: 160V
  Rated Impulse Voltage: 2.5KV
Pollution Degree: 3
Rated Voltage Acc.to UL CSA: 600V/300V
Insulation Resistance: 1010Ω Min
Contact Resistance:
  Power Contact: 0.3mΩ Max
  Signal Contact: 3mΩ Max
Limiting Temperatures: -40℃ ~ +125℃
Mating cycles: 500 Times Min
