Double SIM Card Connector,PUSH PULL,H3.0mm KLS1-SIM2-002A All Products in SIM card connectors

Double SIM Card Connector,PUSH PULL,H3.0mm


  Product Images

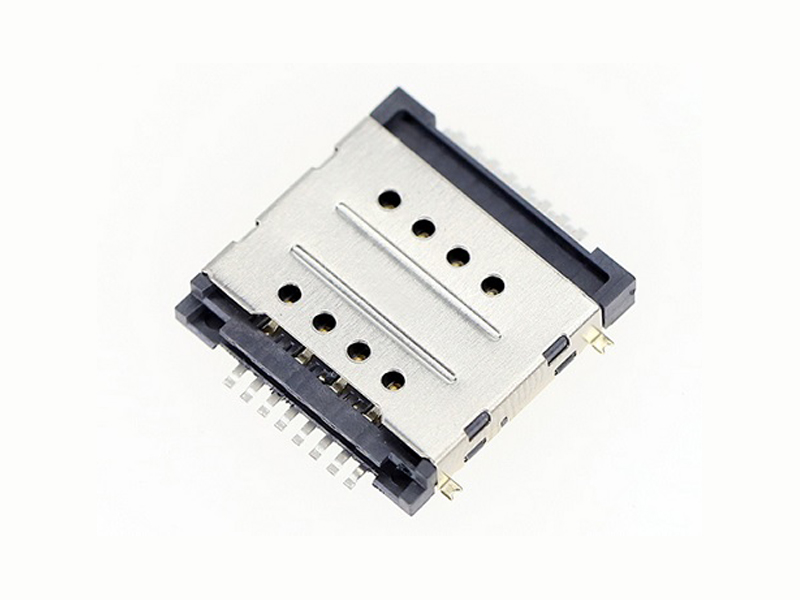

Double SIM Card Connector,PUSH PULL,H3.0mm


  Product Information
Double SIM Card Connector,PUSH PULL,H3.0mm

Material:
Housing:Hi-TEMP Plastic,UL94V-0.Black.
Terminal:Copper alloy
Shell:Stainless Steel

Finish:
Terminal:Au Plated on the contact area ,
            Matte tin plated on the solder
            tails underplated over nickel
Shell:Au Plated on the solder tails
        underplated over nickel


Electrical:
Contact Resistance:50mΩ Max
Withstanding Voltage:350V AC rms for 1 minut
Insulation resistance:1000MΩ Min
Durability:3000 cycles
Normal force:20gf / PIN Min

Picture Part No. PDF Description Order Qty. Time Order
KLS1-SIM2-002A-8P-H3.0-RDouble SIM Card Connector PUSH PULL,8 Pins,Height 3.0mm,Roll Pack.
