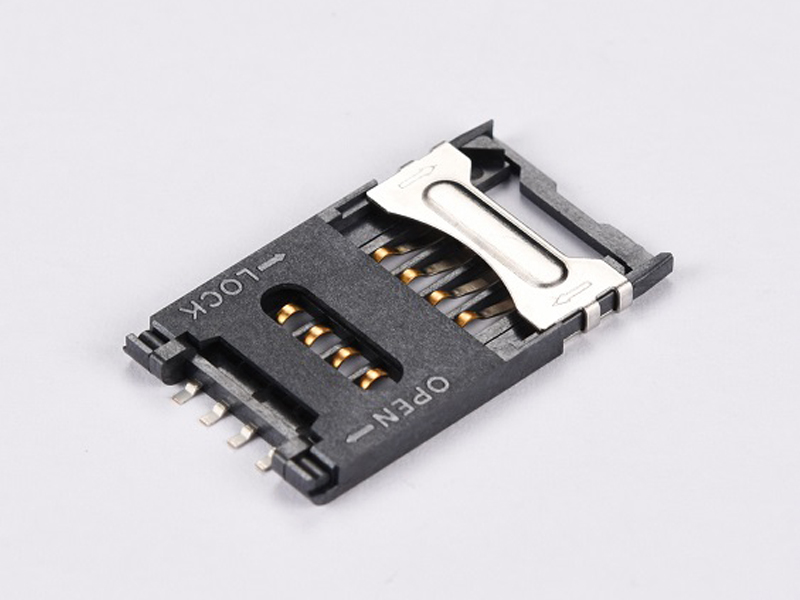

6P & 8P SIM Card Connector Hinged type,H2.5mm
Order Information:
KLS1-SIM-012-6P-R
Pins:6pin,8pin
R=Roll pack T=Tube pack
Material:
Housing:LCP UL94V-0
Contact Terminal:Phosphor Bronze
Metallic Shell:Stainless Steel-SUS304
Plating:
Contact Terminal Plating
Contact Area:5μ" Gold
Soldering Area:100μ" Tin
Under-plating:50μ" Nickel above
Electrical:
Voltage Rating:50 V max
Current Rating:1A max
Operating Temperature: -45ºC~+105ºC
Contact Resistance:50 mΩ typical,100mΩ max
Insulating Resistance:1000 mΩ min.(Apply 500V DC)
Dielectric Withstanding Voltage:500 VAC for 1 minute
Mechanical:
Durability:min 5,000 cycles
|
