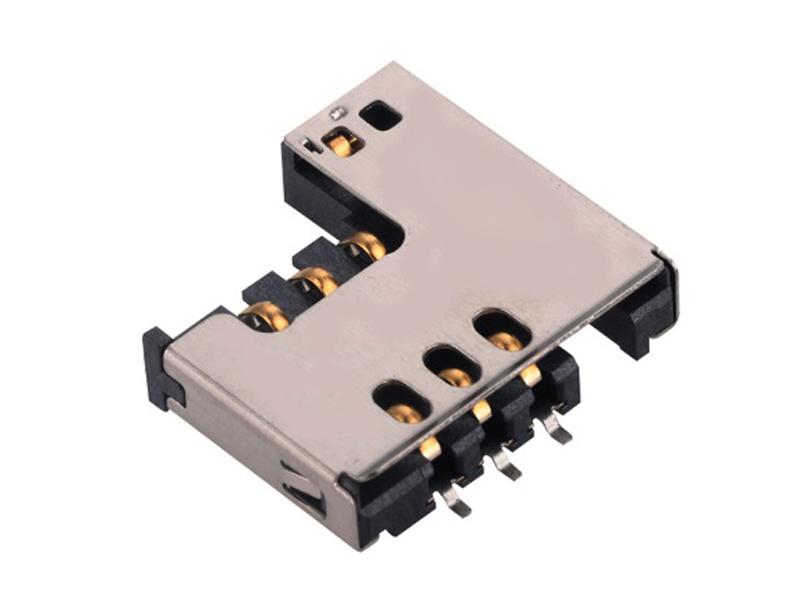

SIM Card Connector;PUSH PULL,6P+2P,H3.0mm,Roll pack.
Material:
Base:Hi Temp Thermoplastic,Black UL94V-0
Cover:Stainless Steel
Data Contact:Copper Alloy, Gold plated
Switch Contact 1:Copper Alloy,Gold plated
Switch Contact 2:Copper Alloy,Gold plated
General Characteristics
Dimensions:15.85L*16.50W*3.00H mm
Weight:Approx 0.78%%P0.2g
Durability:5000 cycles min.
Electrical Characteristics
Contact Resistance:50mΩ typical 100mΩ Max.
Insulation Resistance:1000MΩ Min./500V DC
|
