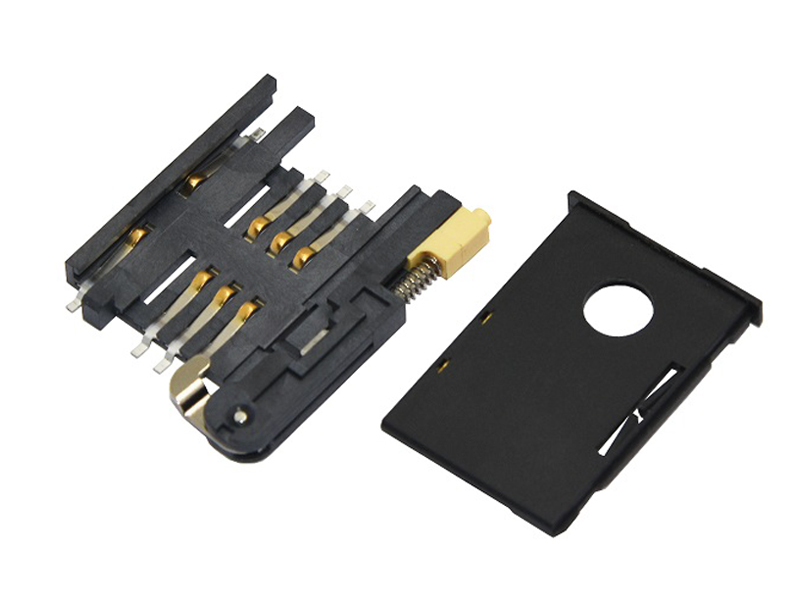

SIM Card connector,PUSH PUSH,6P+2P & 8P+2P

Order Information:
KLS1-SIM-014-6P-R
6P=6+2pin, 8P=8+2pin
R=Roll pack

Material:
Housing Material: LCP UL94V-0
Contact Material: Tin-Bronze
Package: Tape and Reel Package

Electrical Characteristics:
Voltage rating: 5V (AC.DC) Max
Current Rating: 10mA  (AC.DC) Max
Withstand voltage: 500V AC/1Minute
Insulation resistance: ≥1000ΜΩ Min At 500V AC
Contact resistance: ≤30MΩ
Life: ＞10000 Cycles
Operating Temperature: -45ºC~+105ºC
