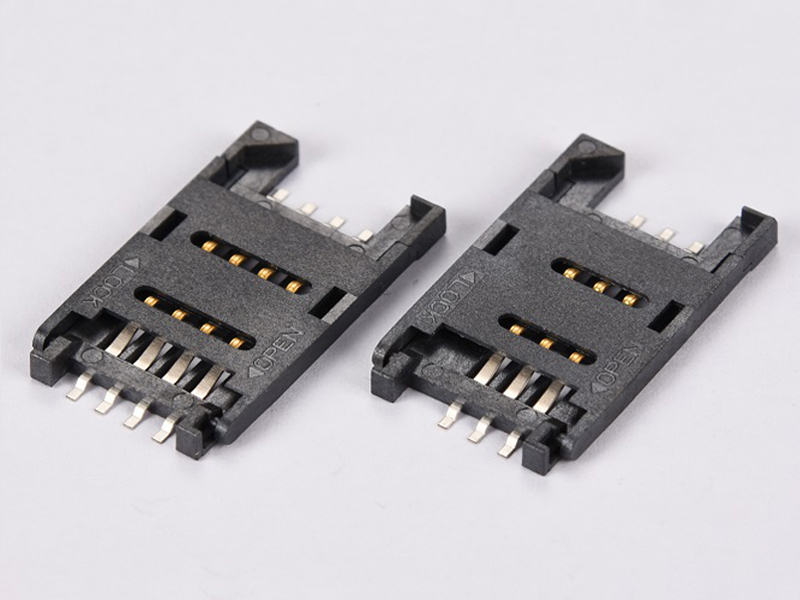

6P & 8P SIM Card Connector Hinged type,H2.5mm
Order Information:
KLS1-SIM-010A-H2.5-6P-1-R
Pins:6pin,8pin
0=With peg 1=Without peg
R=Roll pack
Material:
Insulator body:LCP. Color:Black
Contact:Phosphor Bronze
Plating:
Finsh:Tin Gold or Duplex plated.
Standard:Gold flash 3u" all over Nickel
Electrical:
Current Rating:0.5A.
Dielectric Withstanding Voltage:500V AC
Insulation Resistance:1000MΩ Min
Contact Resistance:30mΩ Max.
Life: 10000 Cycles
Operating Temperature: -45ºC~+105ºC |
