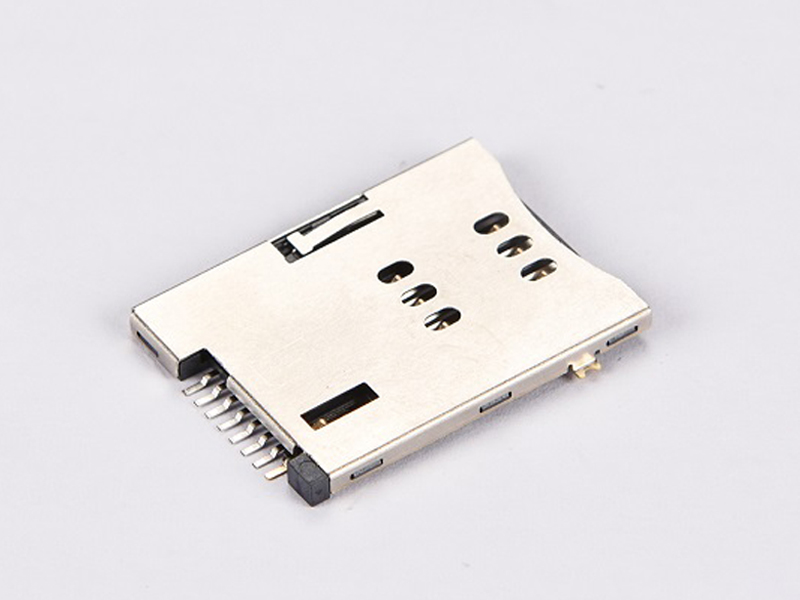

SIM Card Connector;PUSH PUSH,6P+2P,H1.80mm With post or Without post.
Material:
Housing Material: LCP UL94V-0
Contact Material: Tin-Bronze
Package: Tape and Reel Package
Electrical Characteristics:
Voltage rating: 100V AC
Current Rating: 0.5A Max
Withstand voltage: 250V AC/1Minute
Insulation resistance: ≥1000ΜΩ
Contact resistance: ≤30mΩ
Life: >5000 Cycles
Operating Temperature: -45ºC~+85ºC |
