2 In 1 SIM Card +Micro SD Connector,PUSH PULL,H2.7mm KLS1-SIM-024 All Products in SIM card connectors

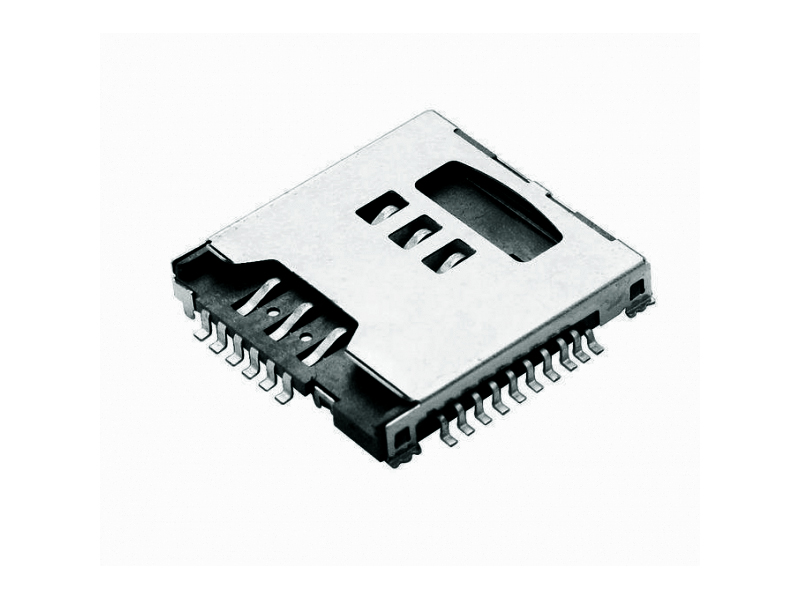

2 In 1 SIM Card +Micro SD Connector,PUSH PULL,H2.7mm


  Product Images
2 In 1 SIM Card +Micro SD Connector,PUSH PULL,H2.7mm 2 In 1 SIM Card +Micro SD Connector,PUSH PULL,H2.7mm 2 In 1 SIM Card +Micro SD Connector,PUSH PULL,H2.7mm


  Product Information
2 In 1 SIM Card +Micro SD Connector,PUSH PULL,H2.7mm

Electrical:
Voltage:100V AC
Current:0.5A Max.
Contact Resistance:100mΩ Max.
Dielectric Withstanding Voltage:500V AC.
Insulation Resistance:1000MΩ Min

Mechanical:
Card Insertion withdrawal Force:13.8N Max.
Push In Strength:19.6N Max.
Durability:10000 Cycles.
Operating Temperature: -45ºC~+85ºC


Picture Part No. PDF Description Order Qty. Time Order
KLS1-SIM-024SIM Card +Micro SD Connector 2 In 1 ,PUSH PULL,Roll Pack.
