6P SIM Card Connector,PUSH PULL,H2.6mm,with CD Pin KLS1-SIM-078 |
 All Products in SIM card connectors |
|
 |

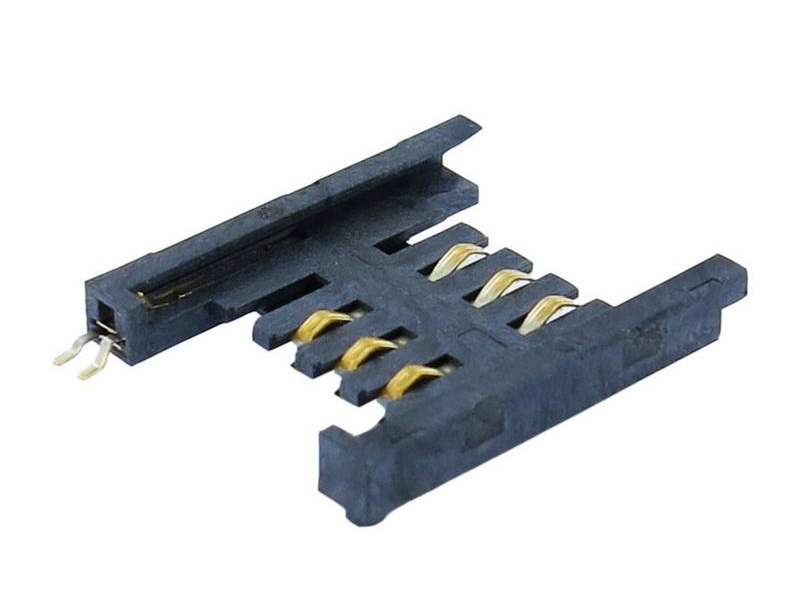

6P SIM Card Connector,PUSH PULL,H2.6mm,with CD Pin
Order Information:
KLS1-SIM-078-6P-H2.6-R
Material:
Material:Phosphor Bronze.
Housing:LCP,UL94V-0.
Contact:Copper Alloy.
Shell:Stainless Steel.
Contact:Selective Gold Flash.
Electrical:
Voltage Current Rating:1 A 50V AC.
Insulation Resistance:1000MΩ Min.
Contact Withstanding Voltage:AC 500V For 1 Minute.
Operating Temperature: -45ºC~+105ºC |
