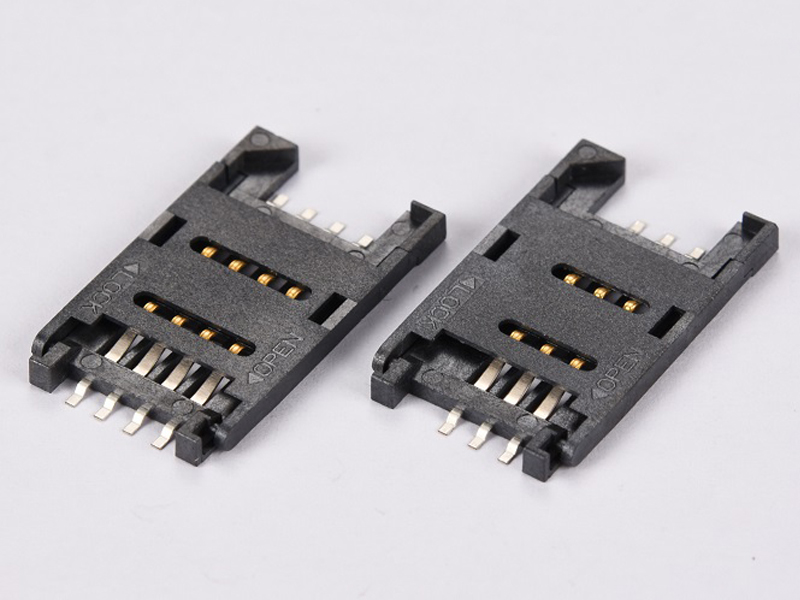

6P & 8P SIM Card Connector Hinged type,H2.8mm
Order Information:
KLS1-SIM-010-6P-1-R
Pins:6pin,8pin
0=With peg 1=Without peg
R=Roll pack
Material:
Housing Material: LCP UL94V-0
Contact Material: Bronze
Contact Area:3u" Gold
Soldering Area:100u" Tin
Package: Tape and Reel Package
Electrical Characteristics:
Voltage rating: 100V AC
Current Rating: 3.0A Max
Withstand voltage: 500V AC/1Minute
Insulation resistance: ≥5000ΜΩ
Contact resistance: ≤20mΩ
Life: ＞5000 Cycles
Operating Temperature: -45ºC~+105ºC
|
