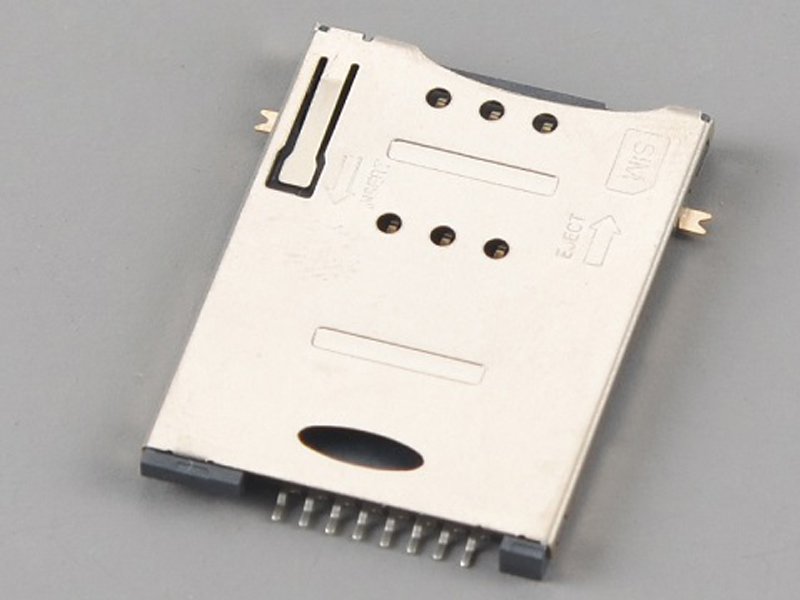

SIM Card Connector,PUSH PUSH,6P+2P,H1.85mm,without Post
Material:
Insulator:H-Temperature Plastic,UL94V-0.Black.
Contact:Copper Alloy,T=0.15mm
Shell:Stainless Steel,T=0.15mm
Finsh:
Terminal:50u" min Nickel Underplated on Allover,Gold Plating on Contact Arer,80u" min
Tin on Solder Tail.
Shell:50u" Nickel Underplated on Allover,Gold Flash on Solder Latch.
Electrical:
Current Rating:0.5A.
Voltage Rating:5.0 Vrms.
Insulation Resistance:500M Min.At DC 500V DC
Withstanding Voltage:250V ACrms For 1 Minute.
Contact Resistance:100M Max.At 10MA/20mV MAX.
Mating Cycles:5000 Insertions.
Operating Temperature: -45ºC~+85ºC
|
