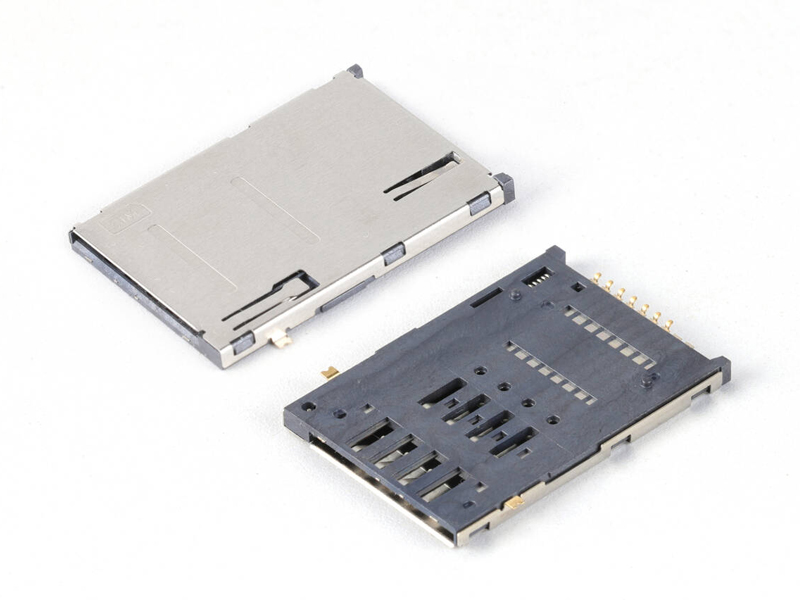

SIM Card Connector,PUSH PUSH,6P+1P,H2.0mm,with Post KLS1-SIM-107A |
 All Products in SIM card connectors |
|
 |
Material:
Housing: High Temperature Thermoplastic
Contactor: Copper Alloy
Shell: Stainless Steel
Plating:
Contactor: 50u" Ni Underplated Overall
G/F Plated On Contact Area
G/F Plated On Solder Area
Shell: 30u" Ni Underplated Overall
G/F Plated On Contact Area And Solder Area
Electrical:
Rated Voltage: 30V
Rated Current: 0.5A
Insulation Resistance: 1000MΩ Min
Contact Resistance: 100mΩ Max
Withstanding Voltage: 500V DC For 1minutes
Operation Temperature: -40°C ~ +85°C
Humidity: 80% R.H Max |
