Male Inserts,Contacts 1,Axial bolt connection,100A 400V KLS1-HQ-001.2-M All Products in HQ Inserts Series

Male Inserts,Contacts 1,Axial bolt connection,100A 400V

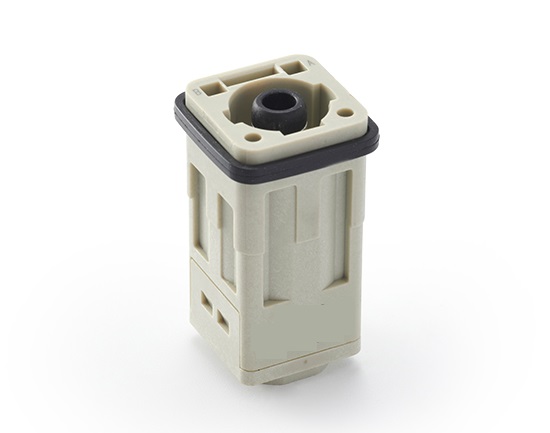

  Product Images
Male Inserts,Contacts 1,Axial bolt connection,100A 400V


  Product Information

Material:
Housing: Polycarbonate, UL94V-0
Colour: RAL 7032 (Light grey)
Contacts: Copper Alloy, Hard-silver plated
Wire gauge: 16-35mm²
Terminal: Axial screw terminal

Eletrical Characteristics:
Number of contacts: 1
Rated Current:100A
Rated Voltage:400V
Rated lmpulse Voltage:6KV
Pollution Degree:3
Insulation Resistance: 1010Ω Min
Contact Resistance: 0.3mΩ Max
Limiting Temperatures: -40°C ~ +125°C
Mating cycles: 500 Times Min

Picture Part No. PDF Description Order Qty. Time Order
