Male Inserts,Contacts 4/2+PE,Crimp connection,40A 690V KLS1-HQ-004-2MC All Products in HQ Inserts Series

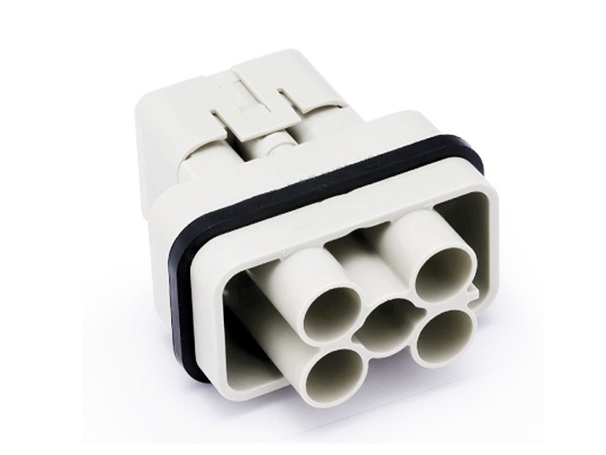

Male Inserts,Contacts 4/2+PE,Crimp connection,40A 690V


  Product Images

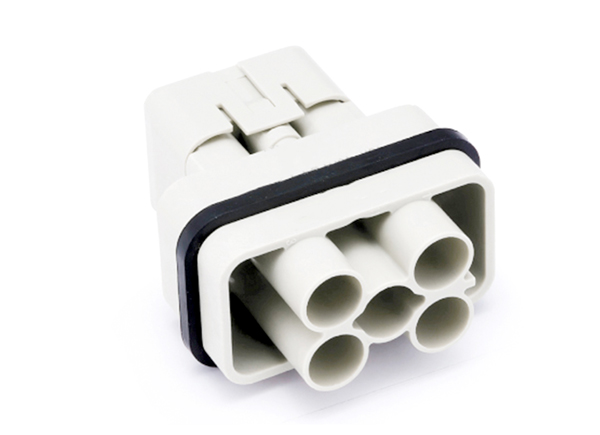

Male Inserts,Contacts 4/2+PE,Crimp connection,40A 690V


  Product Information

Material:
Housing: Polycarbonate, UL94V-0
Colour: RAL 7032 (Light grey)
Contacts: Copper Alloy, Hard-silver plated
                                       Hard-gold plated
Wire gauge:
Power contact:1.5-6.0mm² (16-10 AWG)
PE contact:2.5mm² (14 AWG)
Stripping length:7.5mm
Terminal: Crimp terminal

Eletrical Characteristics:
Number of contacts: 4/2+PE
Rated Current:
Power Side:40 A
Signal Side:10 A
Rated Voltage:
Power Side:400V (Rated Voltage Conductor- Ground)
Conduc tor:690V (Rated Voltage Conductor)
Signal Side:250V
Rated lmpulse Voltage:
Power Side:6KV
Signal Side:4KV
Pollution Degree:3
Rated Voltage Acc.to UL CSA:600/250V
Insulation Resistance: 1010Ω Min
Contact Resistance: 1mΩ Max
Limiting Temperatures: -40°C ~ +125°C
Mating cycles: 500 Times Min
