Male Inserts,Contacts 21,Crimp connection,6.5A 50V KLS1-HQ-021-MC All Products in HQ Inserts Series

Male Inserts,Contacts 21,Crimp connection,6.5A 50V

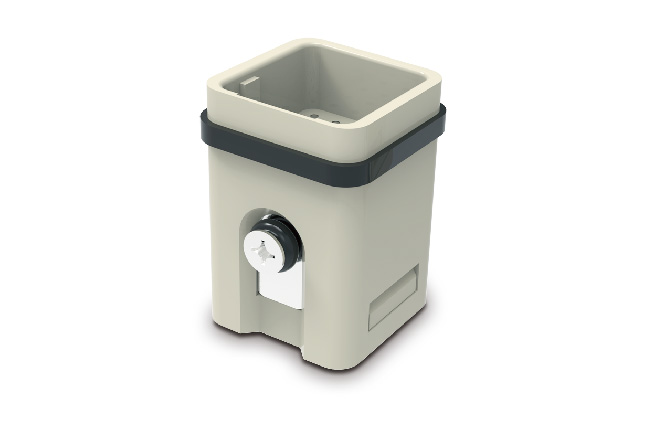

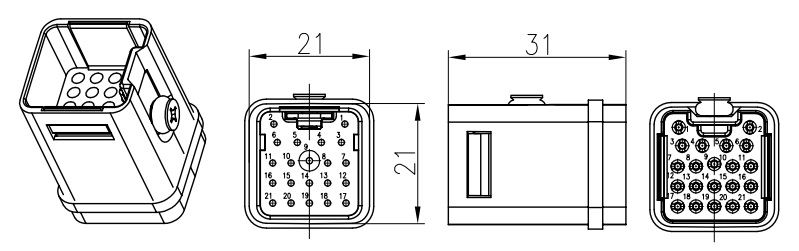

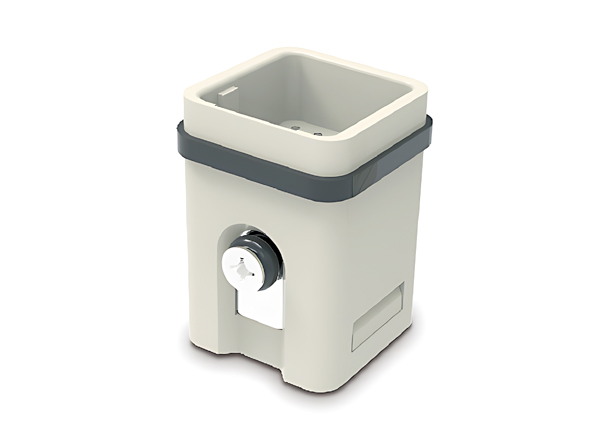

  Product Images
Male Inserts,Contacts 21,Crimp connection,6.5A 50V Male Inserts,Contacts 21,Crimp connection,6.5A 50V Male Inserts,Contacts 21,Crimp connection,6.5A 50V Male Inserts,Contacts 21,Crimp connection,6.5A 50V


  Product Information

Material:
Housing: Polycarbonate, UL94V-0
Colour: RAL 7032 (Light grey)
Contacts: Copper Alloy, Hard-silver plated
                                       Hard-gold plated
Wire gauge: 0.09-0.52mm² (28-20 AWG)
Terminal: Crimp terminal

Eletrical Characteristics:
Number of contacts: 21
Rated Current:6.5 A
Rated Voltage:50V
Rated lmpulse Voltage:0.8KV
Pollution Degree:3
Rated Voltage Acc.to UL CSA:50V
Insulation Resistance: 1010Ω Min
Contact Resistance: 3mΩ Max
Limiting Temperatures: -40°C ~ +125°C
Mating cycles: 500 Times Min

Picture Part No. PDF Description Order Qty. Time Order
