Male Inserts,Contacts 5+PE,Spring connection(quick),16A 400V KLS1-HQ-005-0MQ All Products in HQ Inserts Series

Male Inserts,Contacts 5+PE,Spring connection(quick),16A 400V

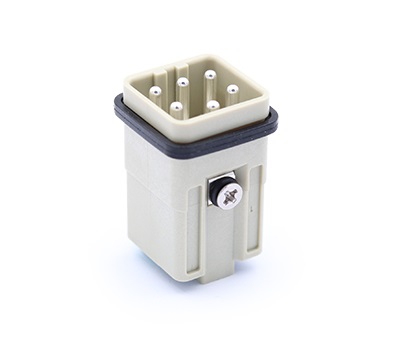

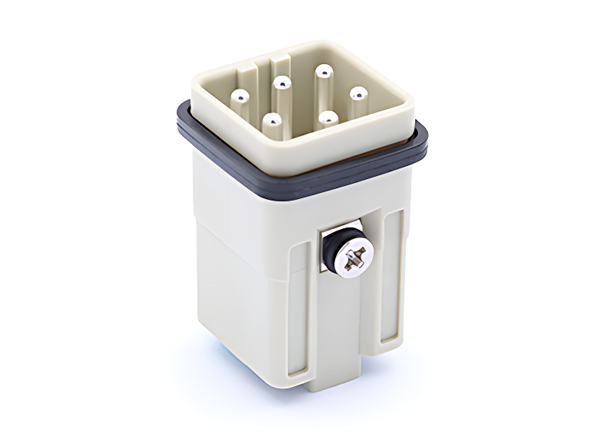

  Product Images
Male Inserts,Contacts 5+PE,Spring connection(quick),16A 400V


  Product Information

Material:
Housing: Polycarbonate, UL94V-0
Colour: RAL 7032 (Light grey)
Contacts: Copper Alloy, Hard-silver plated
Wire gauge: 0.14-2.5mm² (26-14 AWG)
Terminal: Spring terminal (quick connection)

Eletrical Characteristics:
Number of contacts: 5+PE
Rated Current:16 A
Rated Voltage:230V/400V
Rated lmpulse Voltage:4KV
Pollution Degree:3
Insulation Resistance: 1010Ω Min
Contact Resistance: 3mΩ Max
Limiting Temperatures: -40°C ~ +125°C
Mating cycles: 500 Times Min

Picture Part No. PDF Description Order Qty. Time Order
