Male Inserts,Contacts 7+PE,Crimp connection,10A 400V KLS1-HQ-007-0MC All Products in HQ Inserts Series

Male Inserts,Contacts 7+PE,Crimp connection,10A 400V

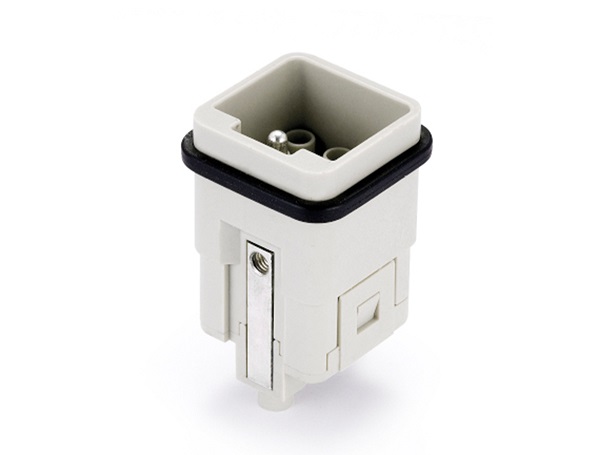

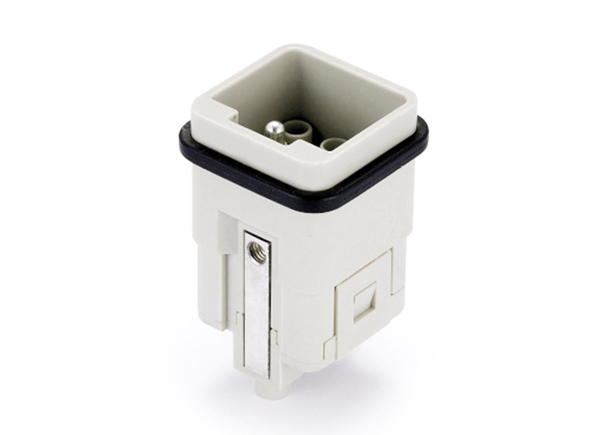

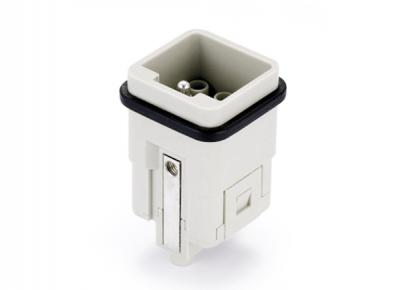

  Product Images
Male Inserts,Contacts 7+PE,Crimp connection,10A 400V Male Inserts,Contacts 7+PE,Crimp connection,10A 400V Male Inserts,Contacts 7+PE,Crimp connection,10A 400V Male Inserts,Contacts 7+PE,Crimp connection,10A 400V


  Product Information

Material:
Housing: Polycarbonate, UL94V-0
Colour: RAL 7032 (Light grey)
Contacts: Copper Alloy, Hard-silver plated
                                       Hard-gold plated
Wire gauge:
Power contact:0.14-2.5mm² (26-14 AWG)
PE contact:2.5mm² (14 AWG)
Terminal: Crimp terminal

Eletrical Characteristics:
Number of contacts: 5+PE
Rated Current:10 A
Rated Voltage:400V
Rated lmpulse Voltage:4KV
Pollution Degree:3
Rated Voltage Acc.to UL CSA:600V
Insulation Resistance: 1010Ω Min
Contact Resistance: 3mΩ Max
Limiting Temperatures: -40°C ~ +125°C
Mating cycles: 500 Times Min
