Female Inserts,Contacts 10+RJ45,Crimp connection KLS1-HQ-RJ45/10-FC All Products in HQ Inserts Series

Female Inserts,Contacts 10+RJ45,Crimp connection

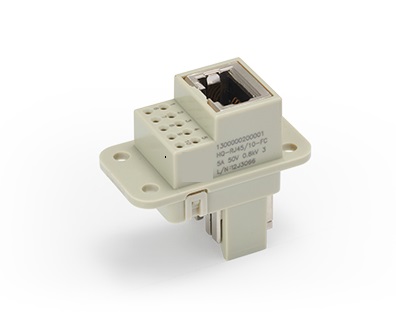

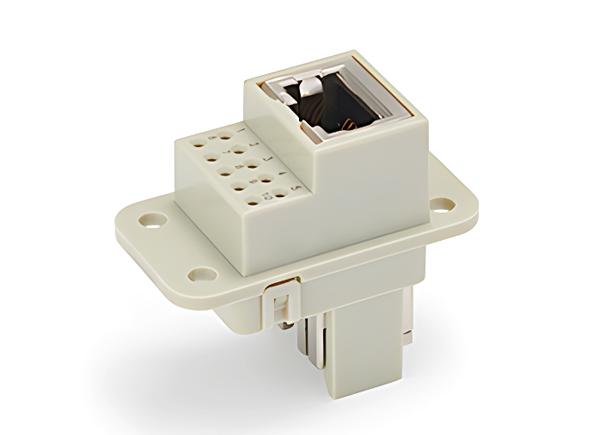

  Product Images
Female Inserts,Contacts 10+RJ45,Crimp connection


  Product Information
Technical specification:
Insters:
- No. of contact: 10+RJ45
- Rated current:
Power area: 5A
. Signal area: 1A
- Rated voltage: 50V
- Rated impulse voltage: 0.8kV
- Pollution degree: 3
Insulation resistance:1010Ω Min
- Contact resistance: 3mΩ Max

- Material: polycarbonate
- Colour: RAL 7032(ight grey)
- Temperature range: -40C - +85C
- Flommability acc.to UL 94: V0
- Mating cycles: 2500
- Transmission features: category 6/Closs E
up to 500 MHz; acc.
to IS0/IEC 24 702;
- Transmissiong rate: 10/ 100/ 100Mbit/ 10Gbit/s
Contacts:
- Terminal: crimp terminal
- Moterial: copper aloy
- Surface:
. Hard-siver plated
. Hard-gold ploted
- Wire gouge: 0.09-0.82mm2(28-18 AWG)
一Tools:
Crimp contact tool: TL03
Contact removal tool: TL08

Picture Part No. PDF Description Order Qty. Time Order
