Male Inserts,Contacts 3+PE,Crimp connection,40A 400V KLS1-HQ-003-0MC All Products in HQ Inserts Series

Male Inserts,Contacts 3+PE,Crimp connection,40A 400V


  Product Images

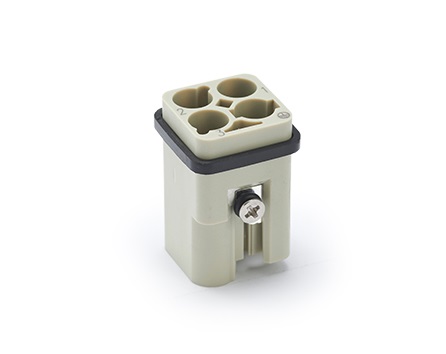

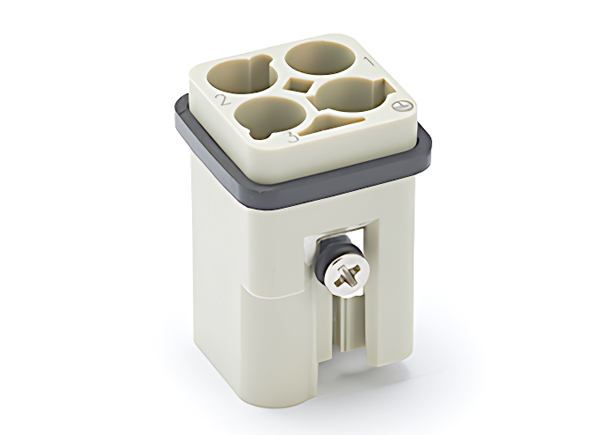

Male Inserts,Contacts 3+PE,Crimp connection,40A 400V


  Product Information

Material:
Housing: Polycarbonate, UL94V-0
Colour: RAL 7032 (Light grey)
Contacts: Copper Alloy, Hard-silver plated
                                       Hard-gold plated
Wire gauge: 1.5-10mm² (16-8 AWG)
Terminal: Crimp terminal

Eletrical Characteristics:
Number of contacts: 3+PE
Rated Current:
Power Side:40 A
Signal Side:400 A
Rated lmpulse Voltage:6KV
Pollution Degree:3
Rated Voltage Acc.to UL CSA:600V
Insulation Resistance: 1010Ω Min
Contact Resistance: 1mΩ Max
Limiting Temperatures: -40°C ~ +125°C
Mating cycles: 500 Times Min

Picture Part No. PDF Description Order Qty. Time Order
