Male Inserts,Contacts 8+PE,Crimp connection,16A 500V KLS1-HQ-008-0FC All Products in HQ Inserts Series

Male Inserts,Contacts 8+PE,Crimp connection,16A 500V

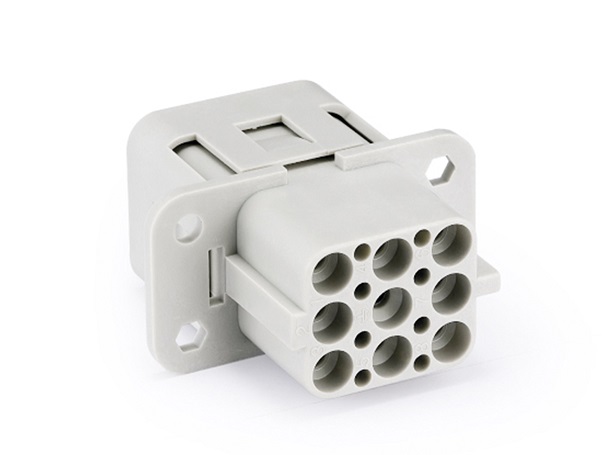

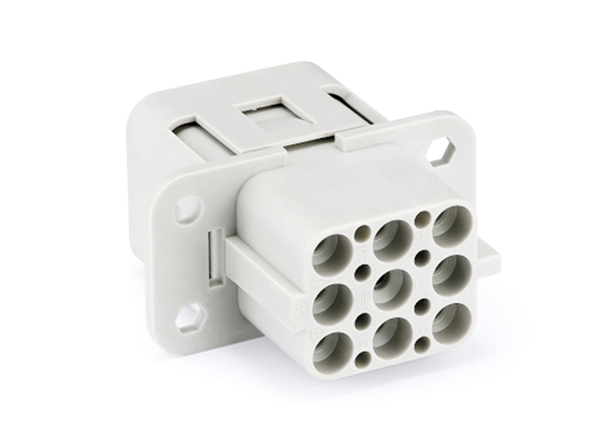

  Product Images
Male Inserts,Contacts 8+PE,Crimp connection,16A 500V Male Inserts,Contacts 8+PE,Crimp connection,16A 500V Male Inserts,Contacts 8+PE,Crimp connection,16A 500V Male Inserts,Contacts 8+PE,Crimp connection,16A 500V


  Product Information

Material:
Housing:Polycarbonate,UL 94 V-0
Colour:RAL 7032 (Light grey)
Hoods:
Plastic hoods: Thermoplastic
Metak hoods:Metal
Locking Element:
Plastic hoods Polyamide
Metal hods::Stainless Steel
Hoods seal:NBR
Contacts:Copper Alloy, Hard- sil ver plated
Hard- Gold Plated
Wire gauge:
Crimp terminal:0.14-4mm² (26 -12 AWG)
Party loded up to 4mm² is possible
Accessories:
Relay contacts:
CESM- 1.0R / CESM- 1.5R / CESM-2.5R
Crimping tool:
TL02G (0.5~4mm² )
TL02(0.14~0.37mm² )
Contact removal tool:TL01
Coding element:CODE-E
Terminal:Crimp terminal

Electrical Characteristics:
Number of contacts:8+PE
Rated Current: 16A
Rated Voltage:500V
Rated /mpulse Voltage:6KV
Pollution Degree:3
Mounted metal hood: 16A 230/400V 4KV
Rated Voltage Acc.to UL CSA:600V
Insulation Resistance: 1010Ω Min
Contact Resistance: 1mΩ Max
Limiting Temperatures: -40°C ~ +125°C
Mating cycles: 500 Times Min
