Male Inserts,Contacts 2+PE,Axial screw connection,40A 830V KLS1-HQ-002.1-M All Products in HQ Inserts Series

Male Inserts,Contacts 2+PE,Axial screw connection,40A 830V

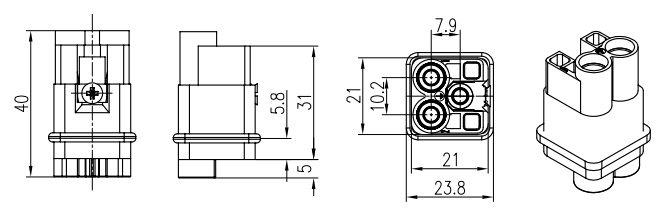

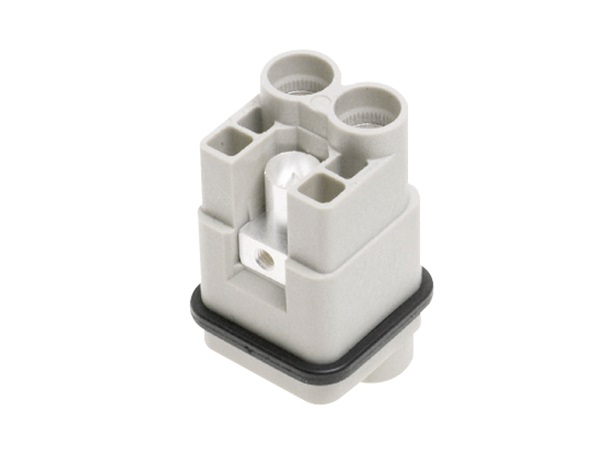

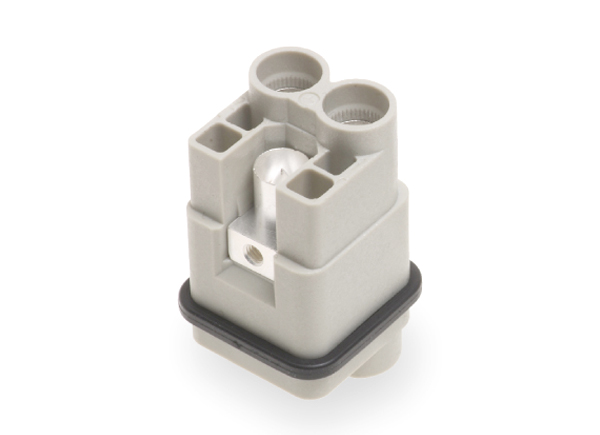

  Product Images
Male Inserts,Contacts 2+PE,Axial screw connection,40A 830V


  Product Information

Material:
Housing: Polycarbonate, UL94V-0
Colour: RAL 7032 (Light grey)
Contacts: Copper Alloy, Hard-silver plated
Wire gauge: 2.5-6mm² (14-10 AWG)
Terminal: Axial screw terminal

Eletrical Characteristics:
Number of contacts: 2+PE
Rated Current:40A
Rated Voltage:830V
Rated lmpulse Voltage:6KV
Pollution Degree:3
Insulation Resistance: 1010Ω Min
Contact Resistance: 1mΩ Max
Limiting Temperatures: -40°C ~ +125°C
Mating cycles: 500 Times Min

Picture Part No. PDF Description Order Qty. Time Order
