Female Inserts,Contacts 1,Axial bolt connection,100A 400V KLS1-HQ-001.1-F All Products in HQ Inserts Series

Female Inserts,Contacts 1,Axial bolt connection,100A 400V


  Product Images

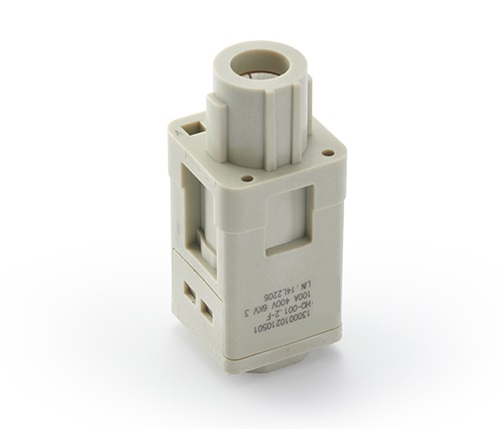

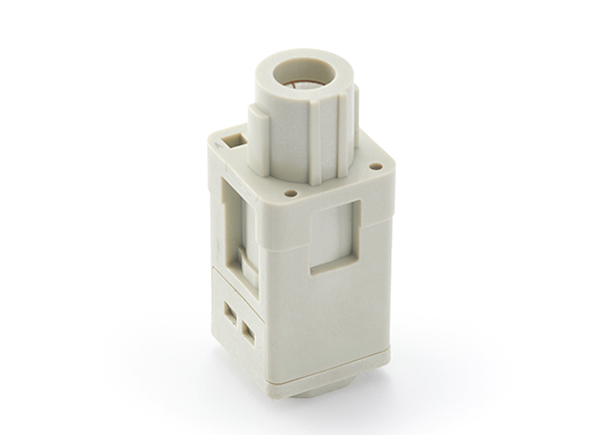

Female Inserts,Contacts 1,Axial bolt connection,100A 400V


  Product Information

Material:
Housing: Polycarbonate, UL94V-0
Colour: RAL 7032 (Light grey)
Contacts: Copper Alloy, Hard-silver plated
Wire gauge: 10-25mm²
Terminal: Axial screw terminal

Eletrical Characteristics:
Number of contacts: 1
Rated Current:100A
Rated Voltage:400V
Rated lmpulse Voltage:6KV
Pollution Degree:3
Insulation Resistance: 1010Ω Min
Contact Resistance: 0.3mΩ Max
Limiting Temperatures: -40°C ~ +125°C
Mating cycles: 500 Times Min

Picture Part No. PDF Description Order Qty. Time Order
