M23 Circular connector M623 type （signal）
Material:
Housing: Zinc alloy
Housing plating: Nickel plating
Insulator: PA66+30%GF
Contacts: Copper alloy
ORDER INFORMATION:
KLS15-223-M623-6A-M1
(2)(3)
(2) pins：6A,7A,9A,9B,9C,12A,12B,16A,17A,17B,19A

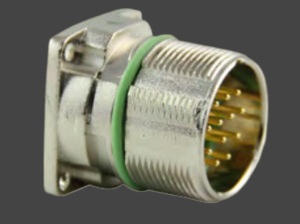

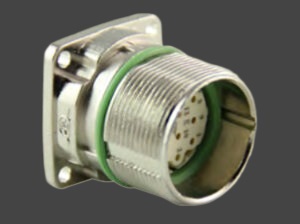

(3) F1-Straight Plug Socket F2-Docking Plug Pin M4-Receptacle solcket M1- Receptacle Pin
| TYPE |
TYPE |
PINS |
ORDERING |
 |
 |
6,7,9,12,16,17,19 pins |
F1 |
 |
 |
6,7,9,12,16,17,19 pins |
F2 |
 |
 |
6,7,9,12,16,17,19 pins |
M2 |
 |
 |
6,7,9,12,16,17,19 pins |
M3 |
 |
 |
6,7,9,12,16,17,19 pins |
M1 |
|
|
|
|
 |
 |
6,7,9,12,16,17,19 pins |
F3 |
 |
 |
6,7,9,12,16,17,19 pins |
M4 |
 |
 |
|
CAP |
|
|
|
|
|
