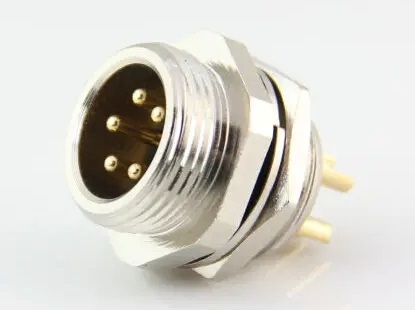

M16 Circular Connector IP67
Subminiature Circular Connector are widely useed for the Hi-Tech trade. thread type. Used in the installation of the panel, small, exquisite and sensitive.
Material:
Housing: Zinc alloy
Housing plating: Nickel plating
Insulator: Bakelite
Contacts: Copper alloy
ORDER INFORMATION:
KLS15-225C-M16-2M1
(1) (2)(3)
(1) M16: M16 Shell Size
(2) 2: 2 pins (2,3,4,5,6,7,8,10,12,pins)
(3) F1-Straight Plug Socket M1-Receptacle M3-Square Flange Receptacle Pin
KLS15-225-M16 TYPE Electrical Characteristics:
| Contacts No.: |
2P |
3P |
4P |
5P |
6P |
7P |
8P |
10 |
12P |
| Rated current / Voltage/ |
7A-125V |
5A-125V |
4A-125V |
4A-125V |
| Operation Voltage (AC.V) |
200V |
| Withstanding Voltage (AC.V) |
1500V |
| Insulation resistance (MΩ)DC500V |
2000 |
| Contact resistance (mΩ)DC1A |
10 |
| soder cup mouth diameter Ø(mm) |
1.6 |
1.2 |
0.9 |
| solder diameter Ø(mm) |
2.45 |
2 |
1.15 |
| TYPE |
TYPE |
PINS |
ORDERING |
 |
 |
2,3,4,5,6,7,8,9,10,12 pins |
F1 |
 |
 |
2,3,4,5,6,7,8,9,10,12 pins |
M1 |
 |
 |
2,3,4,5,6,7,8,9,10,12 pins |
M3 |
|
