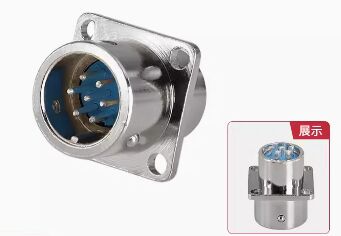

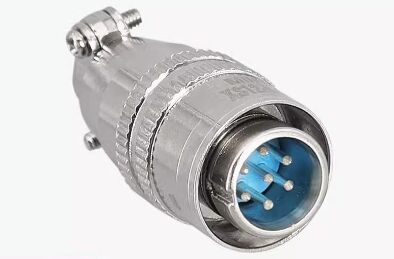

M12 Circular Connector Water proof Ip≥65
Subminiature Circular Connector are widely useed for the Hi-Tech trade. Push-pull self-latching type. Used in the installation of the panel, small, exquisite and sensitive.
Order Information:
KLS15-222-M12-2M1
(1) (2)(3)
(1) M12: M12 Shell Size
(2) 2: 2 pins (2,3,4,5,6,7,8 pins)
(3) F1- Plug Socket F2-Docking Plug Pin F5-Plug Pin M1- Receptacle Pin M5-Receptacle Socket

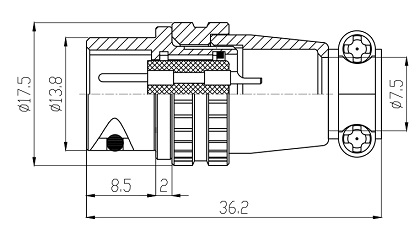

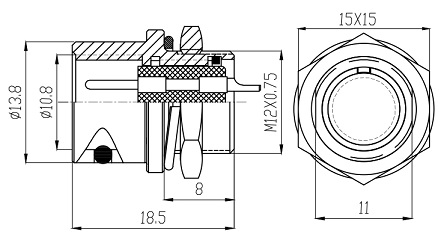

| TYPE |
TYPE |
PINS |
ORDERING |
 |
 |
2,3,4,5,6,7,8 pins |
F1 |
 |
 |
2,3,4,5,6,7,8 pins |
F2 |
 |
 |
2,3,4,5,6,7,8 pins |
M1 |
 |
 |
2,3,4,5,6,7,8 pins |
M2 |
|
|
|
|
 |
 |
2,3,4,5,6,7,8 pins |
F5 |
 |
 |
2,3,4,5,6,7,8 pins |
F6 |
 |
 |
2,3,4,5,6,7,8 pins |
M5 |
 |
 |
2,3,4,5,6,7,8 pins |
M6 |
|
|
|
|
Specification:
| Model |
KLS15-222-M12 |
|
|
| Coupling mode |
Push-pull |
| Shell material |
Zinc base alloys with nickel plate |
| Insert material |
Bakelite |
| Contact material |
Copper (silver plating or gold plating) |
| Termination |
Solder |
| Mating cycle |
500 times |
| Temperature range |
-20~+85℃ |
| Cable diameter |
≤Φ7.5mm~≤Φ8.3mm |
| Protection class |
IP65 |
Technology parameter:
| Number of pins |
2 |
3 |
4 |
5 |
6 |
7 |
8 |
| Rated current/voltage |
5A-200V |
5A-200V |
5A-125V |
5A-125V |
5A-125V |
5A-125V |
5A-125V |
| Operating voltage |
AC 250V |
AC 250V |
AC 250V |
AC 250V |
AC 250V |
AC 250V |
AC 250V |
| Withstanding voltage (in 1 minute) |
AC 2500V |
AC 2500V |
AC 2500V |
AC 2500V |
AC 2500V |
AC 2500V |
AC 2500V |
| Insulation resistance at DC 500V (MΩ) |
3000 |
3000 |
3000 |
3000 |
3000 |
3000 |
3000 |
| Contact resistance at 1A (MΩ) |
10 |
10 |
10 |
10 |
10 |
10 |
10 |
| Solder cup diameter Ф (mm) |
0.9 |
0.9 |
0.9 |
0.9 |
0.9 |
0.9 |
0.9 |
| Pin diameter Ф (mm) |
1 |
1 |
1 |
1 |
1 |
1 |
1 |
|
