M25 Circular Connector (Water proof Ip≥55)
Subminiature Circular Connector are widely useed for the Hi-Tech trade. thread type. Used in the installation of the panel, small, exquisite and sensitive.
Material:
Housing: Zinc alloy
Housing plating: Nickel plating
Insulator: Bakelite
Contacts: Copper alloy
ORDER INFORMATION:
KLS15-225-M25-2M1
(1) (2)(3)
(1) M25: M25 Shell Size
(2) 2: 2 pins (2,3,4,5,6,7,8,10,12 pins)
(3) F1-Straight Plug Socket F2-Docking Plug Pin
M3-Square Flange Receptacle Pin M4-Round Flange Receptacle Pin

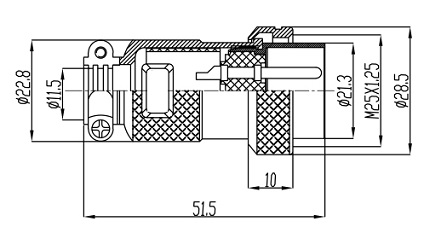

| TYPE |
TYPE |
PINS |
ORDERING |
 |
 |
2,3,4,5,6,7,8,10,12 pins |
F1 |
 |
 |
2,3,4,5,6,7,8,10,12 pins |
F2 |
 |
 |
2,3,4,5,6,7,8,10,12 pins |
F3 |
 |
 |
2,3,4,5,6,7,8,10,12 pins |
M3 |
 |
 |
2,3,4,5,6,7,8,10,12 pins |
M4 |
 |
 |
2,3,4,5,6,7,8,10,12 pins |
F4 |
 |
 |
2,3,4,5,6,7,8,10,12 pins |
F5 |
 |
 |
2,3,4,5,6,7,8,10,12 pins |
F6 |
 |
 |
2,3,4,5,6,7,8,10,12 pins |
M5 |
 |
 |
2,3,4,5,6,7,8,10,12 pins |
M6 |
Specification:
| Model |
KLS15-225-M25 |
| Weight |
0.5kg |
| Coupling mode |
Threaded coupling |
| Shell material |
Zinc base alloys with chromeplate |
| Insert material |
Bakelite |
| Contact material |
Copper (silver plating or gold plating) |
| Termination |
Solder |
| Mating cycle |
500 times |
| Temperature range |
-20~+85℃ |
| Cable diameter |
≤Φ11.5mm |
| Protection class |
IP55 |
Technology parameter:
| Number of pins |
2 |
3 |
4 |
5 |
6 |
7 |
8 |
10 |
12 |
| Rated current/voltage |
45A-300V |
45A-300V |
45A-300V |
35A-250V |
35A-250V |
35A-250V |
16A-250V |
16A-250V |
16A-250V |
| Operating voltage |
AC 500V |
AC 500V |
AC 400V |
AC 400V |
AC 300V |
AC 300V |
AC 200V |
AC 200V |
AC 200V |
| Withstanding voltage (in 1 minute) |
AC 2000V |
AC 2000V |
AC 2000V |
AC 1500V |
AC 1500V |
AC 1500V |
AC 1500V |
AC 1500V |
AC 1500V |
| Insulation resistance at DC 500V (MΩ) |
2000 |
2000 |
2000 |
2000 |
2000 |
2000 |
2000 |
2000 |
2000 |
| Contact resistance at 1A (MΩ) |
1 |
1 |
1 |
1 |
1 |
1 |
3 |
3 |
3 |
| Solder cup diameter Ф (mm) |
2.4 |
2.4 |
2.4 |
2.4 |
2.4 |
2.4 |
1.6 |
1.6 |
1.3 |
| Pin diameter Ф (mm) |
3.5 |
3.5 |
3.5 |
3 |
3 |
3 |
2 |
2 |
1.5 |
|
_0.jpg)
_0.jpg)
