M35 Circular Connector (Water proof Ip≥55)
Subminiature Circular Connector are widely useed for the Hi-Tech trade. thread type. Used in the installation of the panel, small, exquisite and sensitive.
Material:
Housing: Zinc alloy
Housing plating: Nickel plating
Insulator: Bakelite
Contacts: Copper alloy
ORDER INFORMATION:
KLS15-225-M35-2M1
(1) (2)(3)
(1) M35: M35 Shell Size
(2) 2: 2 pins (2,3,4,5,6,7,8pins)

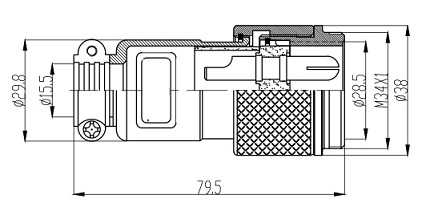

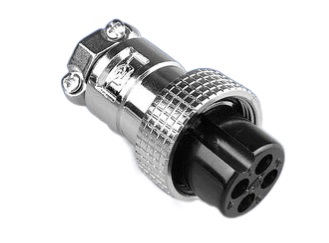

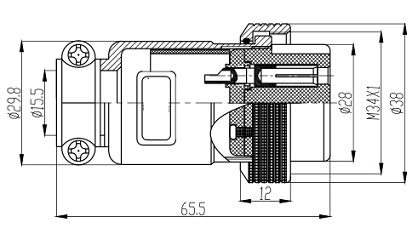

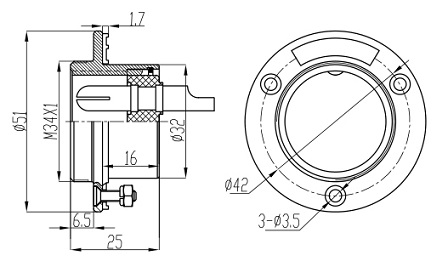

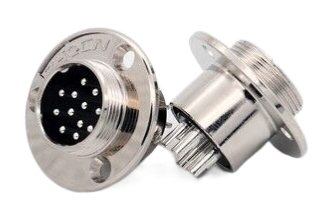

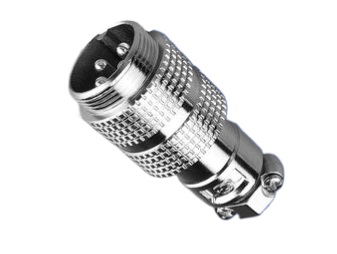

(3) F1-Straight Plug Socket F2-Docking Plug Pin M4-Round Flange Receptacle Pin
| TYPE |
TYPE |
PINS |
ORDERING |
 |
 |
2,3,4,5,6,7,8 pins |
F1 |
 |
 |
2,3,4,5,6,7,8 pins |
F2 |
 |
 |
2,3,4,5,6,7,8 pins |
M4 |
Specification:
| Model |
KLS15-225-M35 |
| Weight |
0.5kg |
| Coupling mode |
Threaded coupling |
| Shell material |
Zinc base alloys with chromeplate |
| Insert material |
Bakelite |
| Contact material |
Copper (silver plating or gold plating) |
| Termination |
Solder |
| Mating cycle |
500 times |
| Temperature range |
-20~+85℃ |
| Cable diameter |
≤Φ15.5mm |
| Protection class |
IP55 |
Technology parameter:

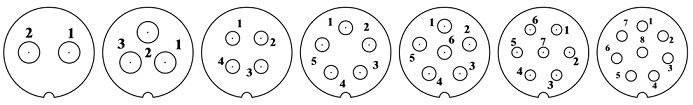

| Number of pins |
2 |
3 |
4 |
5 |
6 |
7 |
8 |
|
|
| Rated current/voltage |
30A-400V |
30A-400V |
25A-250V |
25A-250V |
25A-250V |
15A-250V |
15A-250V |
|
|
| Operating voltage |
AC 600V |
AC 600V |
AC 400V |
AC 400V |
AC 400V |
AC 300V |
AC 300V |
|
|
| Withstanding voltage (in 1 minute) |
AC 3000V |
AC 3000V |
AC 2000V |
AC 2000V |
AC 2000V |
AC 1500V |
AC 1500V |
|
|
| Insulation resistance at DC 500V (MΩ) |
2000 |
2000 |
2000 |
2000 |
2000 |
2000 |
2000 |
|
|
| Contact resistance at 1A (MΩ) |
0.5 |
0.5 |
1 |
1 |
1 |
1 |
1 |
|
|
| Solder cup diameter Ф (mm) |
5.7 |
5.7 |
3.5 |
3.5 |
3.5 |
2.4 |
2.4 |
|
|
| Pin diameter Ф (mm) |
7 |
7 |
4.5 |
4.5 |
4.5 |
3.5 |
3.5 |
|
|
|
