M16 Circular Connector (Water proof Ip≥55) Subminiature Circular Connector are widely useed for the Hi-Tech trade. thread type. Used in the installation of the panel, small, exquisite and sensitive. Material: Housing: Zinc alloy Housing p lating: Nickel plating Insulator: Bakelite Contacts: Copper alloy ORDER INFORMATION: F1-Straight Plug Socket F2-Docking Plug Pin F3-Right Plug Socket M1-Receptacle M2- Through-wall Receptacle Pin Square Flange Receptacle Pin M4- Round Flange Receptacle Pin
KLS15-225-M16 TYPE Electrical Characteristics:
Contacts No.: 2P 3P 4P 5P 6P 7P 8P 9 10P
Rated current / Voltage/ 7A-125V 5A-125V 4A-125V 4A-125V
Operation Voltage (AC.V) 200V
Withstanding Voltage (AC.V) 1500V
Insulation resistance (MΩ)DC500V 2000
Contact resistance (mΩ)DC1A 10
soder cup mouth diameter Ø(mm) 1.6 1.2 0.9
solder diameter Ø(mm) 2.45 2 1.15
TYPE
TYPE
PINS
ORDERING
2,3,4,5,6,7,8,9,10 pins

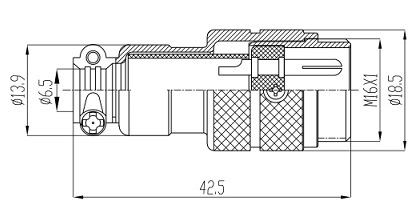

F1
2,3,4,5,6,7,8,9,10 pins
F2
2,3,4,5,6,7,8,9,10 pins F3
2,3,4,5,6,7,8,9,10 pins M1
2,3,4,5,6,7,8,9,10 pins M2
2,3,4,5,6,7,8,9,10 pins M3
2,3,4,5,6,7,8,9,10 pins M4
2,3,4,5,6,7,8,9,10 pins M6
F5
2,3,4,5,6,7,8,9,10 pins M5
Coupling mode Threaded coupling
Shell material Zinc base alloys with nickel plate
Insert material Bakelite
Contact material Copper (silver plating or gold plating)
Termination Solder
Mating cycle 500 times
Temperature range -20~+85℃
Cable diameter ≤Φ7.5mm~≤Φ8.5mm
Protection class IP55
