M20 Circular Connector ( Water proof Ip≥55 ) Subminiature Circular Connector are widely useed for the Hi-Tech trade. thread type. Used in the installation of the panel, small, exquisite and sensitive. Order Information: (1) (2)(3) (1) M20: M20 Shell Size (2) 2: 2 pins (2,3,4,5,6,7,8,9,10,12,14pins) (3) F1- Plug Socket F2-Docking Plug F3- Plug Pin M1- Receptacle Pin M2- Receptacle Socket M3- Flange Receptacle Pin M4- Flange Receptacle Socket
TYPE
TYPE
PINS
ORDERING
2,3,4,5,6,7,8,9,10,12,14 pins
F1
2,3,4,5,6,7,8,9,10,12,14 pins
F2
2,3,4,5,6,7,8,9,10,12,14 pins F5
2,3,4,5,6,7,8,9,10,12,14 pins M1

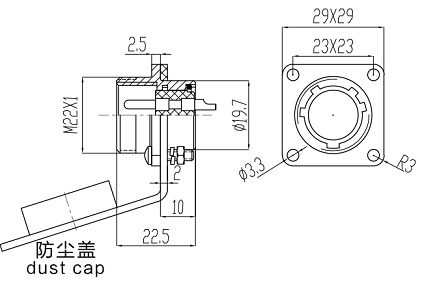

2,3,4,5,6,7,8,9,10,12,14 pins M3
2,3,4,5,6,7,8,9,10,12,14 pins F3
2,3,4,5,6,7,8,9,10,12,14 pins F4
2,3,4,5,6,7,8,9,10,12,14 pins F6
M2
2,3,4,5,6,7,8,9,10,12,14 pins M4
Specification:
Model KLS15-254-M20
Weight 0.5kg
Coupling mode Threaded coupling
Shell material Zinc base alloys with chromeplate
Insert material Bakelite
Contact material Copper (silver plating or gold plating)
Termination Solder
Mating cycle 500 times
Temperature range -20~+85℃
Cable diameter ≤Φ6~≤Φ12.5mm
Protection class IP55
Technology parameter:
Number of pins 2 3 4 5 6 7 8 10 12 14
Rated current/voltage 25A-250V 25A-250V 10A-150V 10A-150V 10A-150V 10A-150V 5A-125V 5A-125V 5A-125V 5A-125V
Operating voltage AC 250V AC 250V AC 200V AC 200V AC 200V AC 200V AC 200V AC 200V AC 200V AC 200V
Withstanding voltage (in 1 minute) AC 2000V AC 2000V AC 1500V AC 1500V AC 1500V AC 1500V AC 1500V AC 1500V AC 1500V AC 1500V
Insulation resistance at DC 500V (MΩ) 2000 2000 2000 2000 2000 2000 1500 1500 1500 1500
Contact resistance at 1A (MΩ) 1 1 3 3 3 3 3 3 3 3
Solder cup diameter Ф (mm) 2 2 1.7 1.7 1.7 1.7 1.2 1.2 1.2 1.2
Pin diameter Ф (mm) 2.5 2.5 1.6 1.6 1.6 1.6 1 1 1 1
