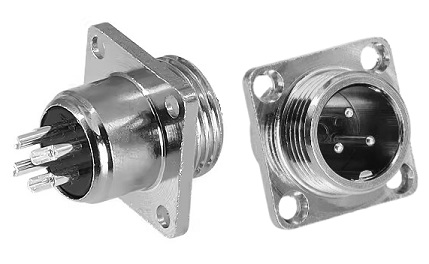

M12 Circular Connector (Safty apporval : UL / Water proof Ip≥55 ) Subminiature Circular Connector are widely useed for the Hi-Tech trade. thread type. Used in the installation of the panel, small, exquisite and sensitive. Material: Housing: Zinc alloy Housing p lating: Nickel plating Insulator: Bakelite Contacts: Copper alloy Order Information: (1) (2)(3) (1) M12: M12 Shell Size (2) 2: 2 pins (2,3,4,5,6,7 pins) (3) F1-Plug Socket F2-Docking Plug Pin M1-Receptacle Pin M2- Through-wall Receptacle Pin
KLS15-225-M12 TYPE Electrical Characteristics:

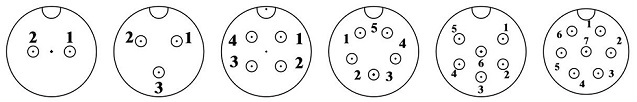

Contacts No.: 2P 3P 4P 5P 6P/7P
Rated current / Voltage/ 5A-125V 5A-125V 5A-125V
Operation Voltage (AC.V) 200
Withstanding Voltage (AC.V) 1500
Insulation resistance (MΩ)DC500V 1500
Contact resistance (mΩ)DC1A 10
soder cup mouth diameter Ø(mm) 0.9
solder diameter Ø(mm) 1.15

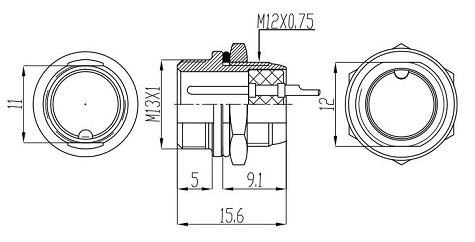

TYPE
TYPE
PINS
ORDERING
2,3,4,5,6,7 pins
F1
2,3,4,5,6,7 pins
F2
2,3,4,5,6,7 pins M1
2,3,4,5,6,7 pins M2
2,3,4,5,6,7 pins M3
2,3,4,5,6,7 pins M4
Weight 0.5kg
Coupling mode Threaded coupling
Shell material Zinc base alloys with nickel plate
Insert material Bakelite
Contact material Copper (silver plating or gold plating)
Termination Solder
Mating cycle 500 times
Temperature range -20~+85℃
Cable diameter ≤Φ5.0mm
Protection class IP55
