8 pin pogo pin connector plain base type KLS1-8PGC01 All Products in Pogo pin connectors

8 pin pogo pin connector plain base type


  Product Images
8 pin pogo pin connector plain base type


  Product Information
8 pin pogo pin connector plain base type




Housing: PPA, PA46, PA9T, LCP

Pogo Pin OEM

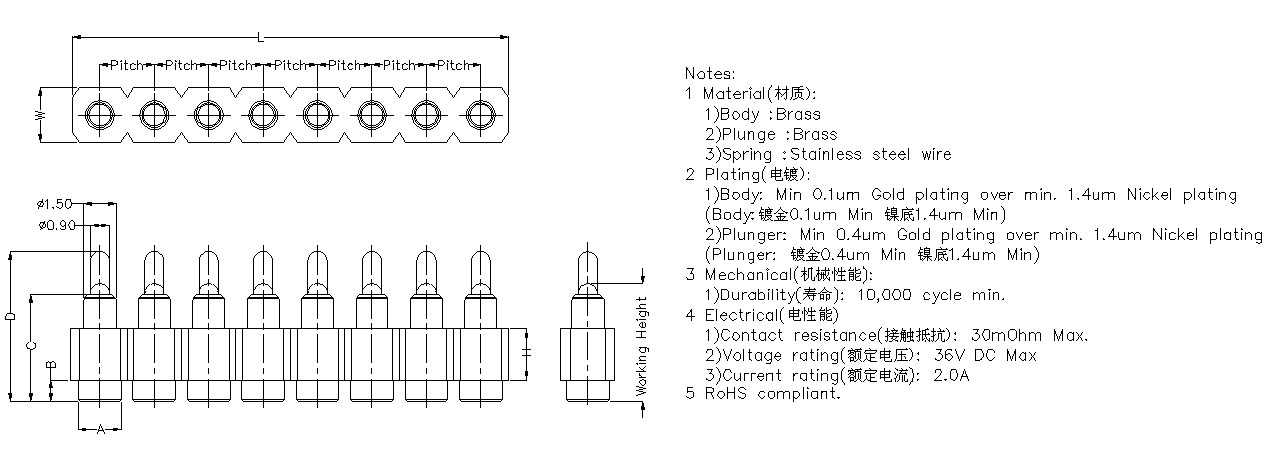

Plastic Size(mm) Pogo Pin Size(mm)
L W H Pitch Cap Positioner A B C D E F Number of Pin


PACK:
Bulk: aluminum foil bag.

Reel: diameter Φ330mm; carrier tape width: 12, 16, 24, 32, 44mm.

=================================================================================

product testing introduction

Goto Top
Electrical performance
1 Contact impedance 30 mohm Max at working stroke Top-Link factory testing standard*
2 Insulation Resistance 500 Mohm Min EIA-364-21
3 Dielectric Withstanding Voltage No flash-over,air discharge,breakdown or leakage EIA-364-20
4 Temperature Rise vs Current Rating 30 °C Max.
temperature rise at specified current
EIA-364-70
Mechanical performance
1 Spring force refer to product drawing EIA-364-04
2 Retention Force 0.5Kgf(4.5N)Min. EIA-364-29
3 Durability 10,000 cycles Min.
No physical damage Resistance after test 30 mohm Max.
EIA-364-09
4 Vibration No physical damage,No electrical discontinuity more than 1i second. EIA-364-28
5 Mechanical Shock No physical damage,No electrical discontinuity more than 1i second. EIA-364-27 method A
Environmental
1 Solderability solder coverage area Min.95% EIA-364-52
2 Salt Spray Corrosion No physical damage. Resistance after test 100 mohm Max. EIA-364-26 condition B
3 Resistance to Solder heat(IR/convection) No cracks,chips,melting,orblister EIA-364-56
4 Humidity No physical damage, Resistance after test 100 mohm Max. EIA-364-31,method ii,condition A
5 Thermal Shock No physical damage, Resistance after test 100 mohm Max. EIA-364-32,method ii
6 Temperature Life No physical damage, Resistance after test 100 mohm Max. EIA-364-17,condition A,condition 4
Environmental
1 peel force 10-130 gf EIA-481
2 Drop Test Refer to drop test Standard of Molex
  • Remark: Considering the difference between test spot and actual work spot, the impedance test condition defined by Top-Link is based on the whole working stroke. This is what we generally said dynamic impedance testing, it differs from the static test condition of ELA-364923, the durability test standard is also based on this test condition.
  • -----------------------------------------------------------------------------------------------------------------------------------------------------------
  • KLS is equipped with comprehensive inspection and reliability testing equipment.
  • KLS attaches great importance to quality management of each link, including IQC, IPQC, 100% dynamic testing of spring force and contact impedance , 100% appearance inspection, FQC sampling inspection, CQC, design verification, regular reliability testing, failure analysis, and so on.
  • KLS has implemented strict and effective quality control over each link which includes product design, sample preparation, trial production and mass production. As a consequence, our product quality is guaranteed.
  • ==========================================================================================
  • pogo pin connector OEM type

    1, small diameter, fine type products
       The minimum can be done is below 0.75
    2, high durability
       Maximum durability of up to 1 million times
    3, large current
       Maximum up to 15A current
    4, high reliability
       100% dynamic impedance testing to ensure 100% functional zero defects
    5, lower operating height
        Minimum working height of up to 1.5mm, the chopping block can be lower
    6, high precision (size & forward force)
        Height tolerances up to +, - 0.05mm positive up to + / - 10%
    7, non-standard structure
       Customer requirements can be customized according to customer requirements, such as: mushroom head structure
