Order Information

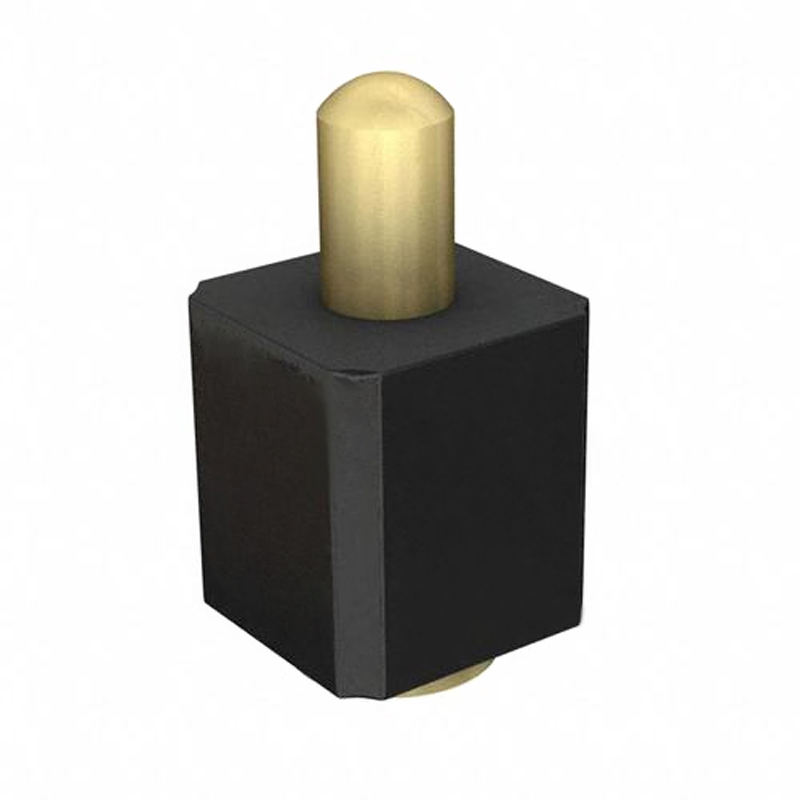

L-KLS1-1PGC01-1001-20U-B
Serise NO: 1PGC01-1001
Plating Code: 1u=1u"Gold Plating
3u=3u"Gold Plating
20u=20u"Gold Plating
Packing: R=Reel B=Bag
Material:
Plunger: C6801
Barrel: C6801
Housing: PA9T(halogen-free),Black
CAP: PA46, Black
Spring: SUS304
Plating:
Plunger: 20 micro-inch min Au over 50~100 micro-inch nickel
Barrel: 20 micro-inch min Au over 50~100 micro-inch nickel
Spring: 3micro-inch min Au over 50~100 micro-inch nickel
Electrical:
Rated Current & Voltage: DC 12V, 1.0A MAX
Contact Resistance: 100 mohm Max, at Working height
Machanical:
Force: 115g+20% at Working height
Durability: 10000 cycles(Min)
Work Touperture:
Withstanding Higt Temperature: 270°C
Operation Temperature: -55°C ~ +125°C
Salt spray test: 48 hours |
