Features:

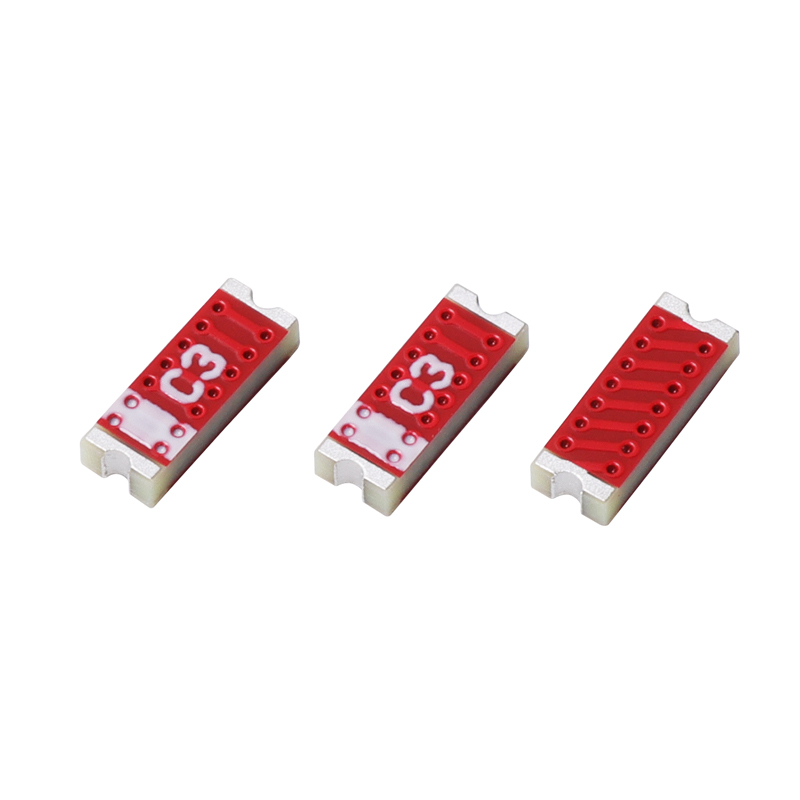

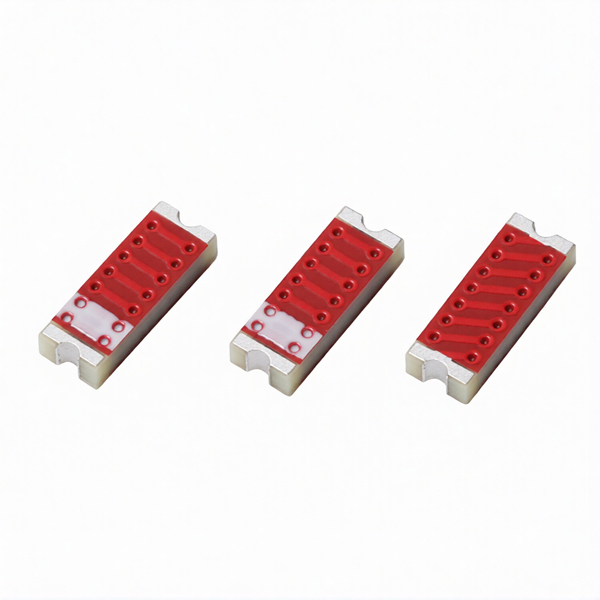

1. Surface Mounted Devices (SMD) with a smal dimension of 5.5 × 2.0 × 1.0 mm³ meet miniaturization trend.
2. Low power loss and high antenna efficiency.
3. High stability in Temperature and Humidity Change.
Electrical Characteristics:
Specification
Working Frequency Range
2450± 50MHz
Fc(GHz)
2.7GHz
Band Width
>100MHz
Impedance
50Ω
Gain(dBi)
4.3(peak)
VSWR
<2
Operation Temperature
-40℃~+95℃
Power Capacity
3W
The working frequency need be adjusted to 2.45GHz with matching circuit.
