Features:

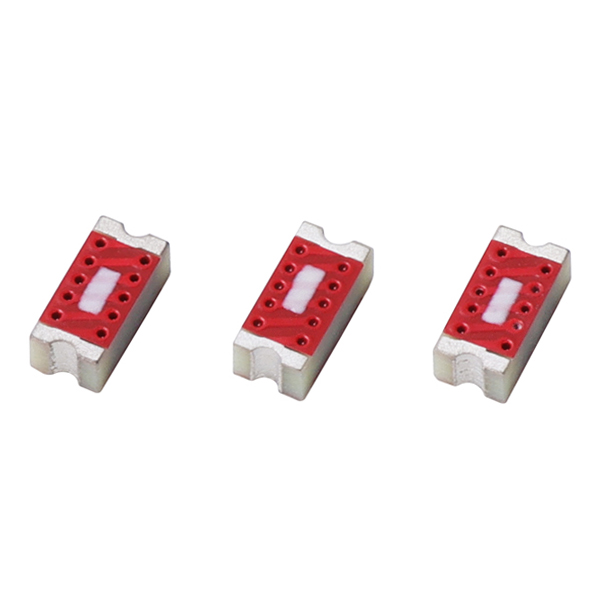

1. Surface Mounted Devices(SMD) with a small dimension of 3.5 × 1.7 × 1.2 mm³ meet miniaturization trend.
2. Low power loss and high antenna efficiency.
3. High stability in Temperature and Humidity Change.
Electrical Characteristics:
Specification
Working Frequency Range
2450± 50MHz
Band Width
>100MHz
Impedance
50Ω
Gain(dBi)
3.74(peak)
VSWR
<2
Operation Temperature
-40℃~+95℃
Power Capacity
3W
The 2.4G operating frequency of the antenna needs to be achieved
through impedance matching device debugging.
