Features:

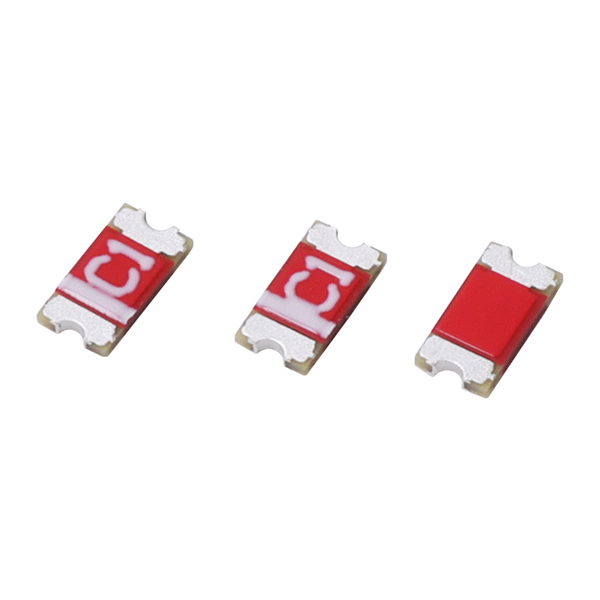

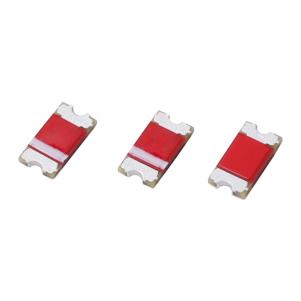

1.Surface Mounted Devices with a small dimension of 3.2 × 1.6 × 0.4 mm³ meet miniaturization trend.
2. Low power loss and high antenna efficiency.
3. High stability in Temperature and Humidity Change.
Electrical Characteristics:
Specification
Working Frequency Range
2450± 50MHz
Band Width
>100MHz
Impedance
50Ω
Gain(dBi)
0.2
VSWR
<2
Operation Temperature
-40℃~+85℃
Power Capacity
3W
The working frequency need be adjusted to 2.45GHz with matching circuit.
