Features:

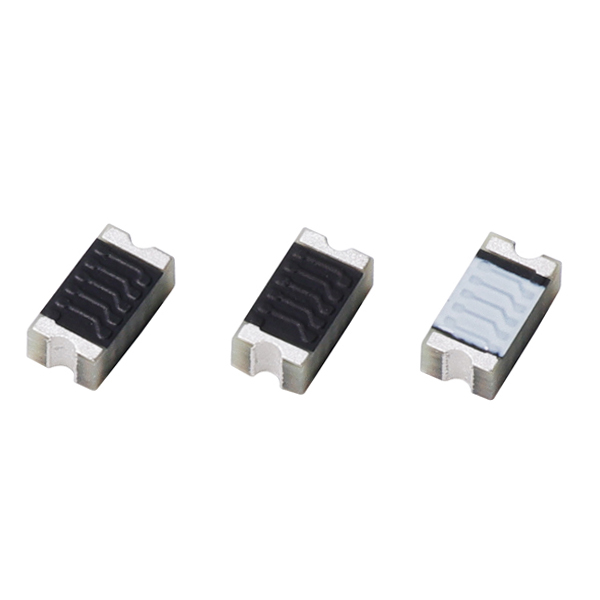

1. Surface Mounted Devices (SMD) with a small dimension of 3.3 × 1.7 × 1.2 mm³ meet miniaturization trend.
2. Low power loss and high antenna efficiency.
3. High stability in Temperature and Humidity Change.
Electrical Characteristics:
Specification
Working Frequency Range
2450± 50MHz
Band Width
>100MHz
Impedance
50Ω
Gain(dBi)
3.85(peak)
VSWR
<2
Operation Temperature
-40℃~+95℃
Power Capacity
3W
The working frequency need be adjusted to 2.45GHz with matching circuit.
