A Female SMD USB Connector KLS1-181CL All Products in USB 2.0 connectors

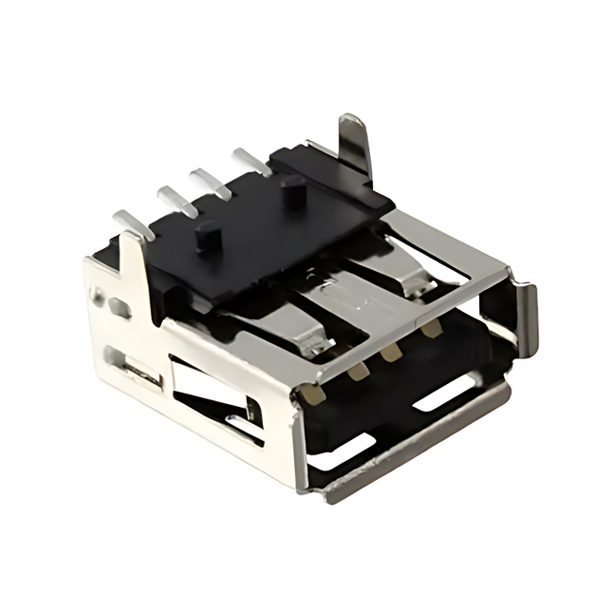

A Female SMD USB Connector


  Product Images
A Female SMD USB Connector


  Product Information

Material
Housing:Hing Temperature Thermoplastic,
              UL94V-0 LCP,Black/White.
Contact:Copper Alloy C2680.
Shell:Copper Alloy C2680/SPCC.

Finish:
Contact:Plated Gold In Mating Area;Tin On Solder Tails.
Shell:Nickel Plating.

Electrical:
Current Rating:1.5A/Contact Terminal.
Voltage Rating:30V DC
Contact Resistance:30mΩ Max.
Dielectric Withstanding Voltage:500 V AC AT Sea Level.
Insulation Resistance:1000MΩ Min.
Connector Mate and Unmated Force
Mate Force:3.75kgf Max.
Unmated Force:1.02kgf Min.
Terminal Retenion:1.2kgf Min.

Picture Part No. PDF Description Order Qty. Time Order
KLS1-181CL-B-RUSB 2.0 Connector With A Type Female SMD,Black,Reel pack.
KLS1-181CL-W-RUSB 2.0 Connector With A Type Female SMD,White,Reel pack.
