SMT A Female Dip 90 USB Connector L11.0mm KLS1-1817A All Products in USB 2.0 connectors

SMT A Female Dip 90 USB Connector L11.0mm

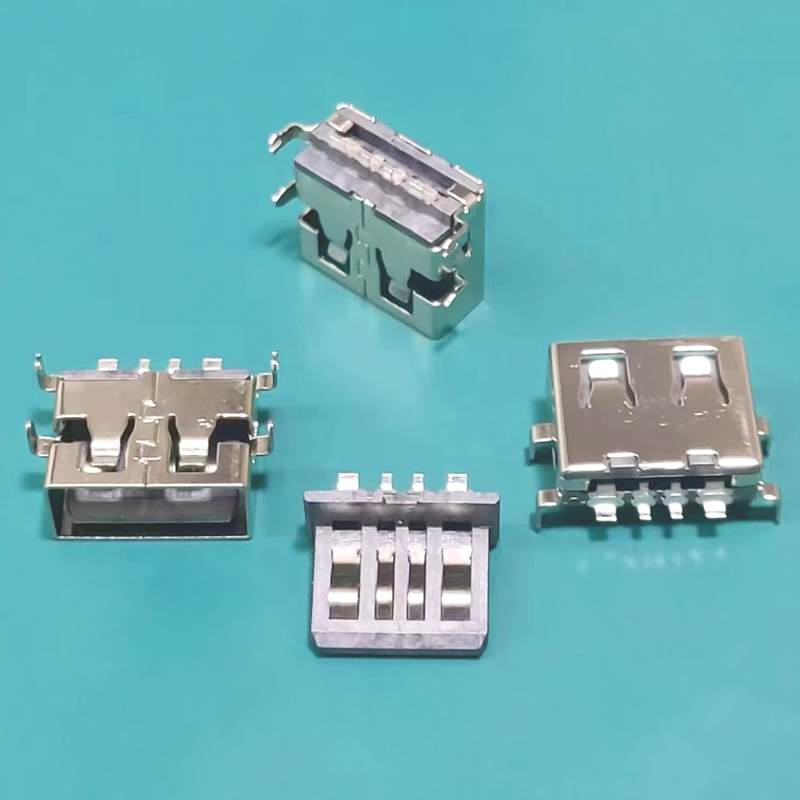

  Product Images
SMT A Female Dip 90 USB Connector L11.0mm


  Product Information
Material:
Housing: Hing Temperature Thermoplastic
Contact: Copper Alloy C2680, Gold PLated
Shell: SPCC.Nickel plating

Electrical:
Current Rating: 3A/5A Contact Terminal.
Voltage Rating: 30V DC
Contact Resistance: 30mΩ Max.
Dielectric Withstanding Voltage: 500 V AC AT Sea Level.
Insulation Resistance: 1000MΩ Min.
Connector Mate and Unmated Force:
    Mate Force: 3.75kgf Max.
    Unmated Force: 1.02kgf Min.
Terminal Retenion: 1.0kgf Min.

Picture Part No. PDF Description Order Qty. Time Order
KLS1-1817A-R-3AA Female Dip 90 USB Connector SMT L11.0mm,Reel Pack,3A
KLS1-1817A-R-5AA Female Dip 90 USB Connector SMT L11.0mm,Reel Pack,5A
